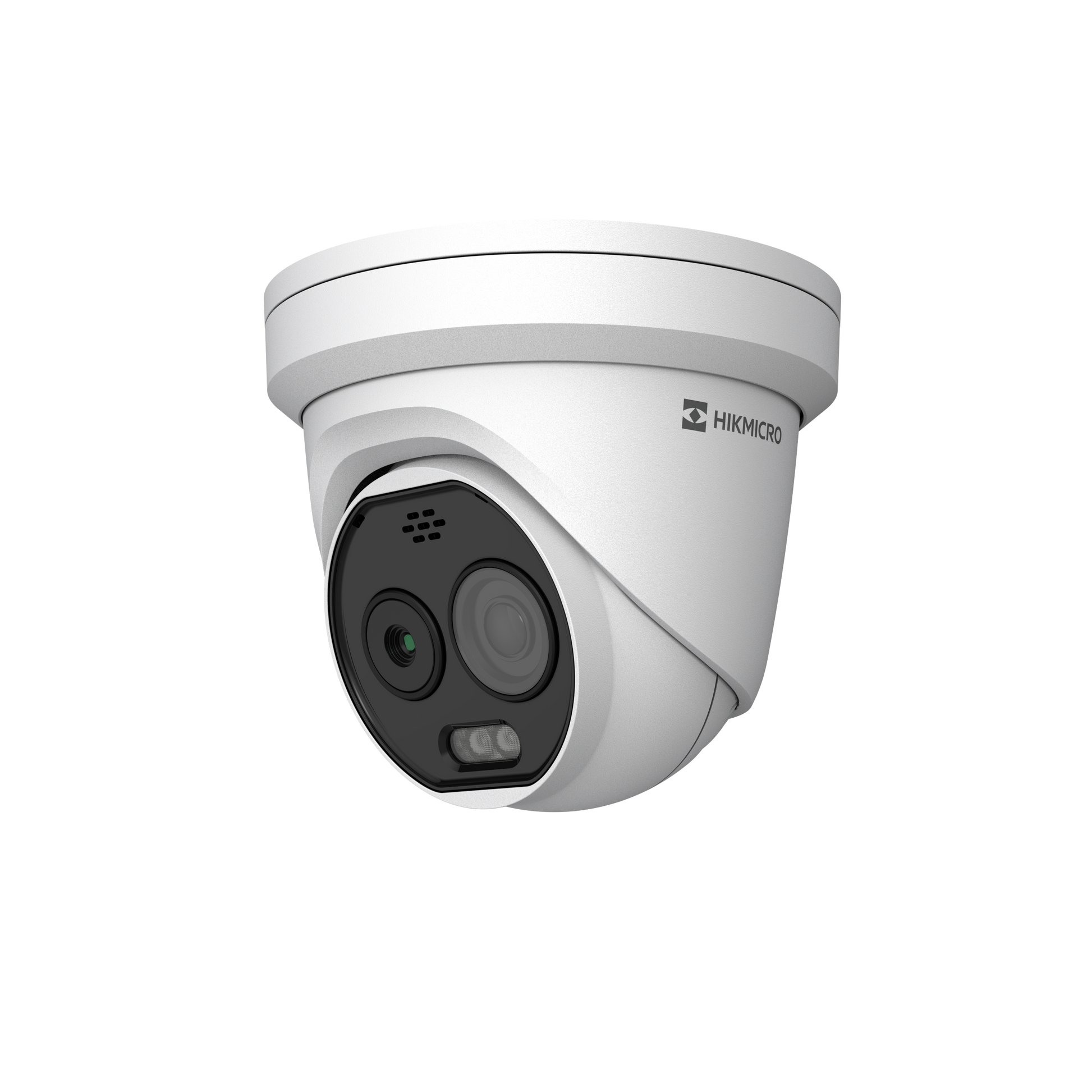

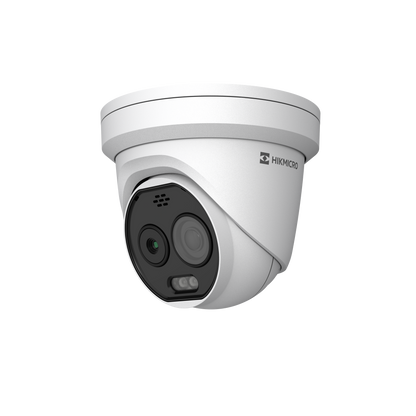

HM-TD1218-2/G0/T1A - Thermal & Optical Bi-Spectrum Network Turret Camera

The Hikvision HeatPro HM-TD1218-2/G0/T1A pairs a thermal camera and a 5 MP colour camera in one turret. It spots people and vehicles in total darkness and watches for fire and abnormal temperatures, which suits warehouses, recycling yards, loading docks and building perimeters.

• Detects in total darkness: a 160 × 120 thermal sensor (NETD ≤ 25 mK) sees heat, not light.
• Fewer false alarms: deep-learning human and vehicle classification (VCA 3.0), with detection up to 60 m for vehicles and 20 m for people.
• Early fire warning: fire point detection (up to 10 points), temperature exception alarms from −20 °C to 150 °C (±8 °C), and smoking detection to spot people smoking where they shouldn't.
• Deters intruders: smart hybrid light (IR or white light, up to 30 m), plus audio and strobe alarms.
• Made for outdoors: IP67, rated for −40 °C to 65 °C, powered by PoE or 12 VDC.

Key specs

• Thermal: 160 × 120 VOx, 12 μm, 1.8 mm lens, 90° × 66.4° field of view
• Optical: 5 MP (2688 × 1944), 2 mm lens, 119.3° × 93.3° field of view, 120 dB WDR
• Image fusion: bi-spectrum fusion and picture-in-picture
• Alarm I/O: 1 input, 2 outputs; audio input
• Power: 12 VDC or PoE (802.3af), 6.5 W max
• Housing: IP67; −40 °C to 65 °C
• Detector: covered by Hikvision's 10-year detector guarantee

Works with

See all thermal cameras. Mount it with the DS-1280ZJ-DM21 junction box.

Buying in Canada

Ships across Canada from Laval, Quebec. Questions about your site? Email sales@noctoptics.com. Installers can open a dealer account for dealer pricing.
