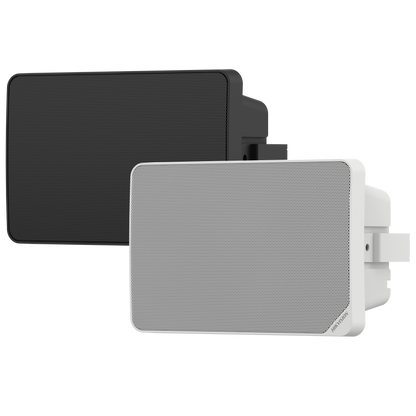

DS-QAE0120G1R - Analog Cabinet Speaker 20W

The Hikvision DS-QAE0120G1R is a commercial-grade, surface-mount 20-watt analog cabinet wall speaker engineered for public address (PA), background music, and voice evacuation systems. Enclosed in a compact plastic main body and front cover with a robust metal mounting bracket, this indoor-rated unit utilizes a high-fidelity 5.25-inch full-frequency driver that projects clear sound in all directions. It operates seamlessly on 70 V and 100 V constant-voltage lines—offering flexible power tapping settings at 5 W, 10 W, 15 W, and 20 W—while also supporting a standard 8 Ω fixed-resistance direct input for multi-system compatibility. The speaker boasts an efficient acoustic sensitivity of 90 dB (1 m, 1 W) and achieves a maximum Sound Pressure Level (SPL) of 103 dB across a 130 Hz to 17.5 kHz frequency response range to optimize speech intelligibility. Designed for operational resilience, the unit features an adjustable multi-angle metal U-bracket for easy horizontal or vertical mounting across a wide -30 °C to 60 °C temperature range, and is available in either a discreet matte black or standard white aesthetic finish.
