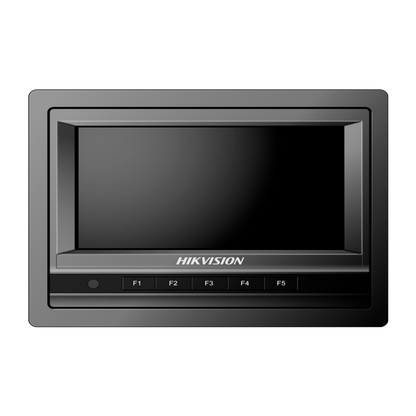

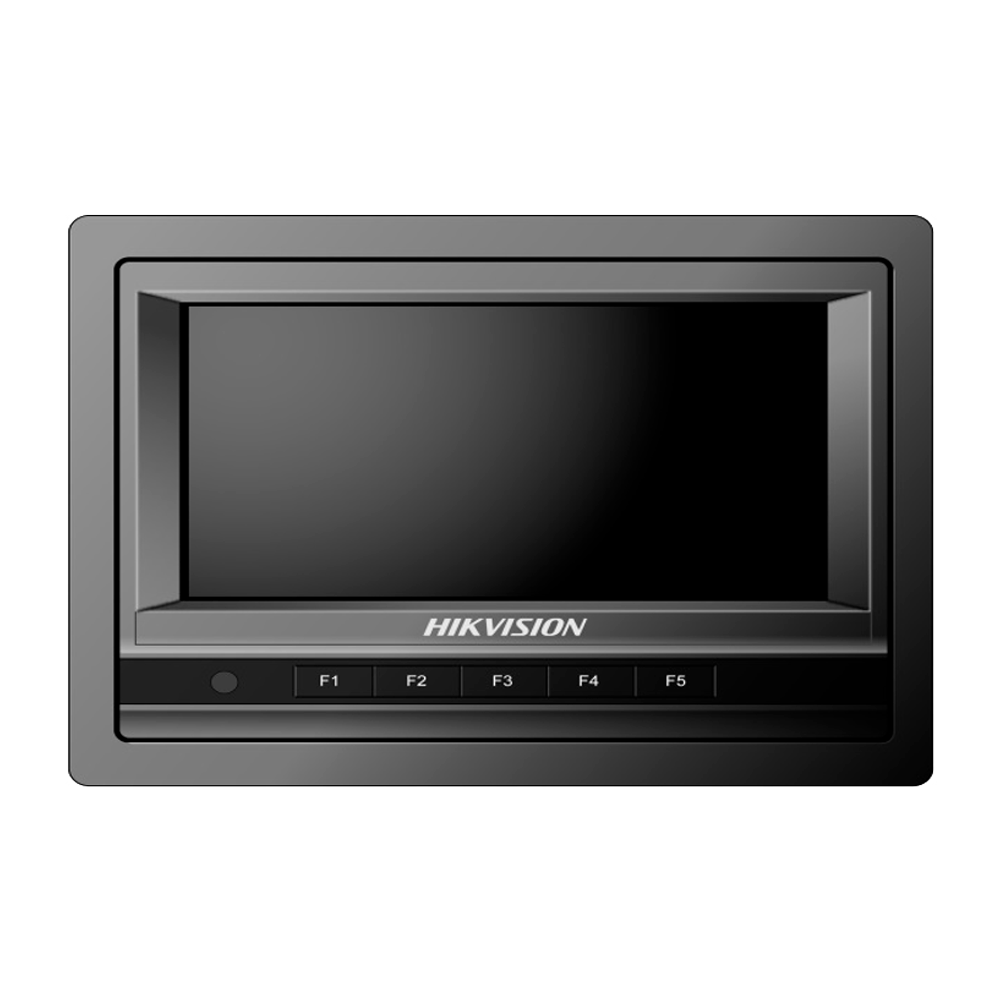

DS-MP1301/Bracket (AE) - 7" Mobile TFT LCD On-Board Monitor with Console Mounting Bracket

The Hikvision DS-MP1301/Bracket(AE) is a professional-grade, 7-inch TFT-LCD vehicle-mounted mobile surveillance monitor equipped with a dedicated dash or console mounting bracket. Designed to provide real-time, low-latency visual reinforcement for drivers, it features an 800 × 480 RGB resolution screen with an adjustable LED backlight and a wide 130° viewing angle. The rugged system supports a 3-channel analog video input infrastructure via vibration-resistant 4-pin aviation male connectors (linking 1 channel to a Mobile DVR, 1 channel to a dedicated rear-view backup camera, and 1 channel for an auxiliary source). Operating on a standard 12 VDC vehicle power draw, the display automatically transitions into a full-screen backup monitor layout when triggered by its 2-channel integrated alarm input lines. It features a built-in speaker for two-way audio support, a front-facing manual control button panel, a mirror-image configuration toggle for correct rear-view perspective, and a weatherproof IP54 ingress defense rating to resist dust and cockpit splashes.
