DS-3WF0EC-5ACT(B) - 5Ghz 867 Mbps 500m Elevator Wireless Bridge

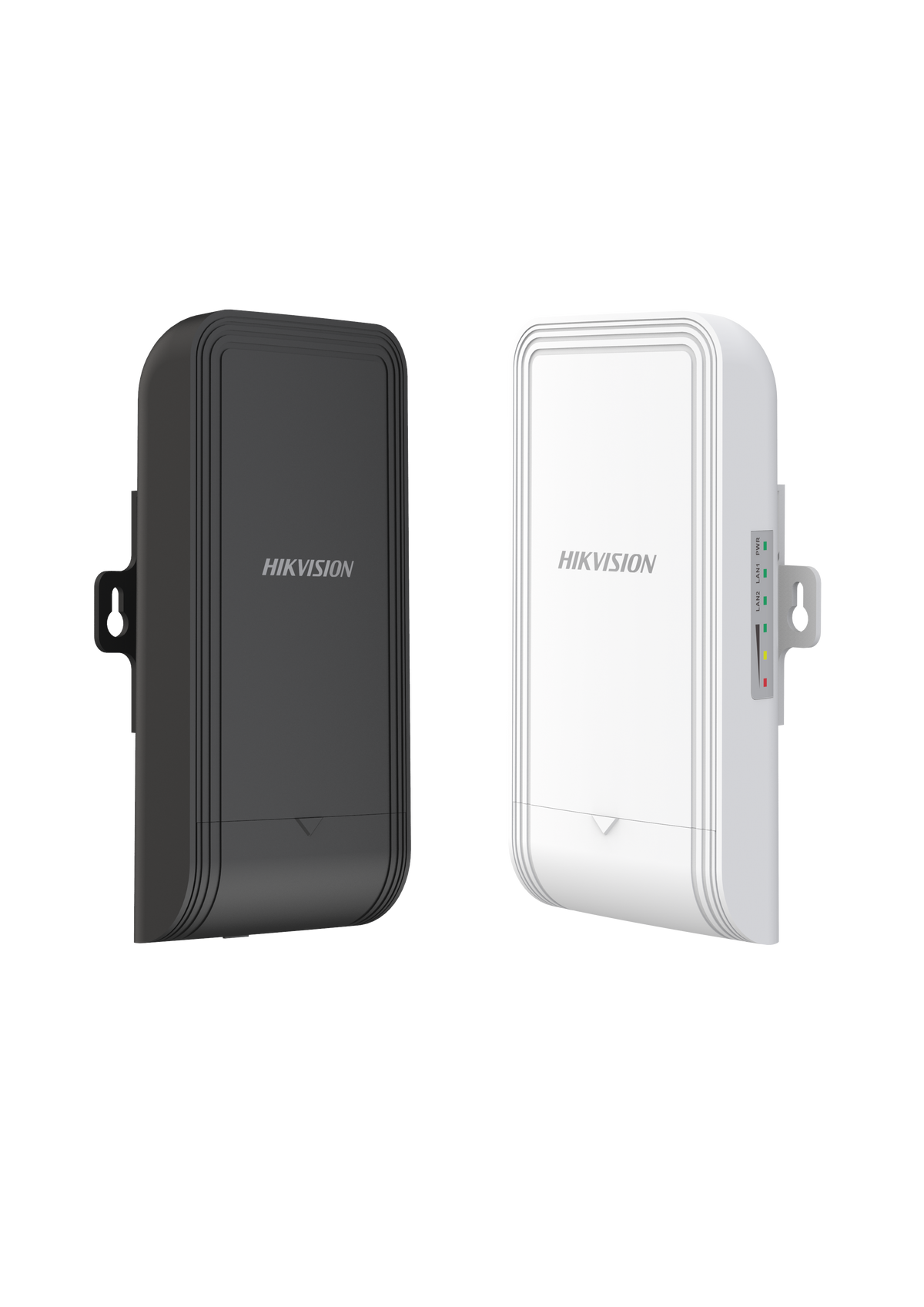

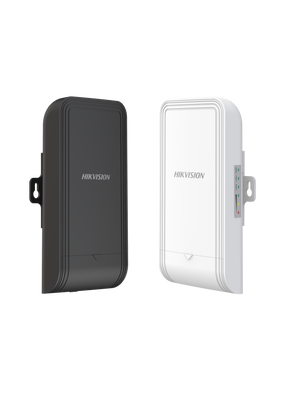

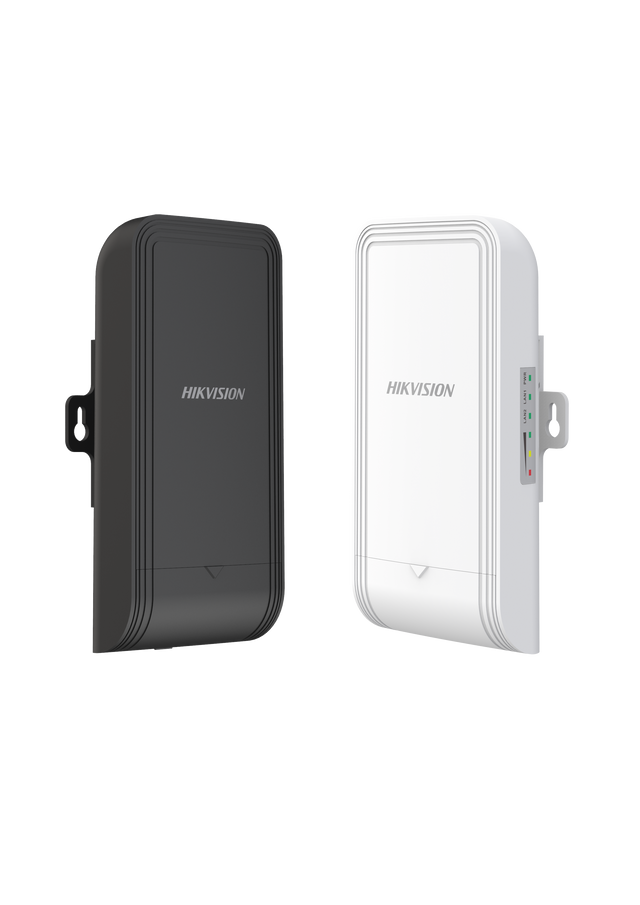

The Hikvision DS-3WF0EC-5ACT(B) is a pair of 5 GHz wireless bridges for elevators. Typically one unit mounts at the top of the shaft and the other on the cab, carrying video from the elevator camera without a travelling cable.

• Up to 500 m wireless range.
• Fast link: 802.11ac, up to 867 Mbps air rate.
• Powers the camera: the cab-side unit provides 802.3af PoE output (10 W budget) for the elevator camera.
• Quick setup: plug-and-play pair with visualized topology management.
• Strong signal: built-in 8 dBi 2×2 MIMO antenna, IP55 housing.

Key specs

• Real throughput: 80 Mbps at 200 m, 40 Mbps at 500 m
• Ports: 2 × 10/100 Mbps RJ45 per unit
• PoE: shaft unit 802.3af/at PoE in; cab unit passive PoE in and 802.3af PoE out
• Operating temperature: −30 °C to 65 °C
• In the box: 2 bridges, 2 PoE power supplies and 2 AC cords

Buying in Canada

Ships across Canada from Laval, Quebec. Adding a camera to an elevator? Email sales@noctoptics.com. Installers can open a dealer account for dealer pricing.
