DS-1673ZJ - Horizontal Pole Mount

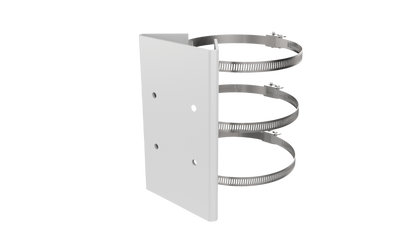

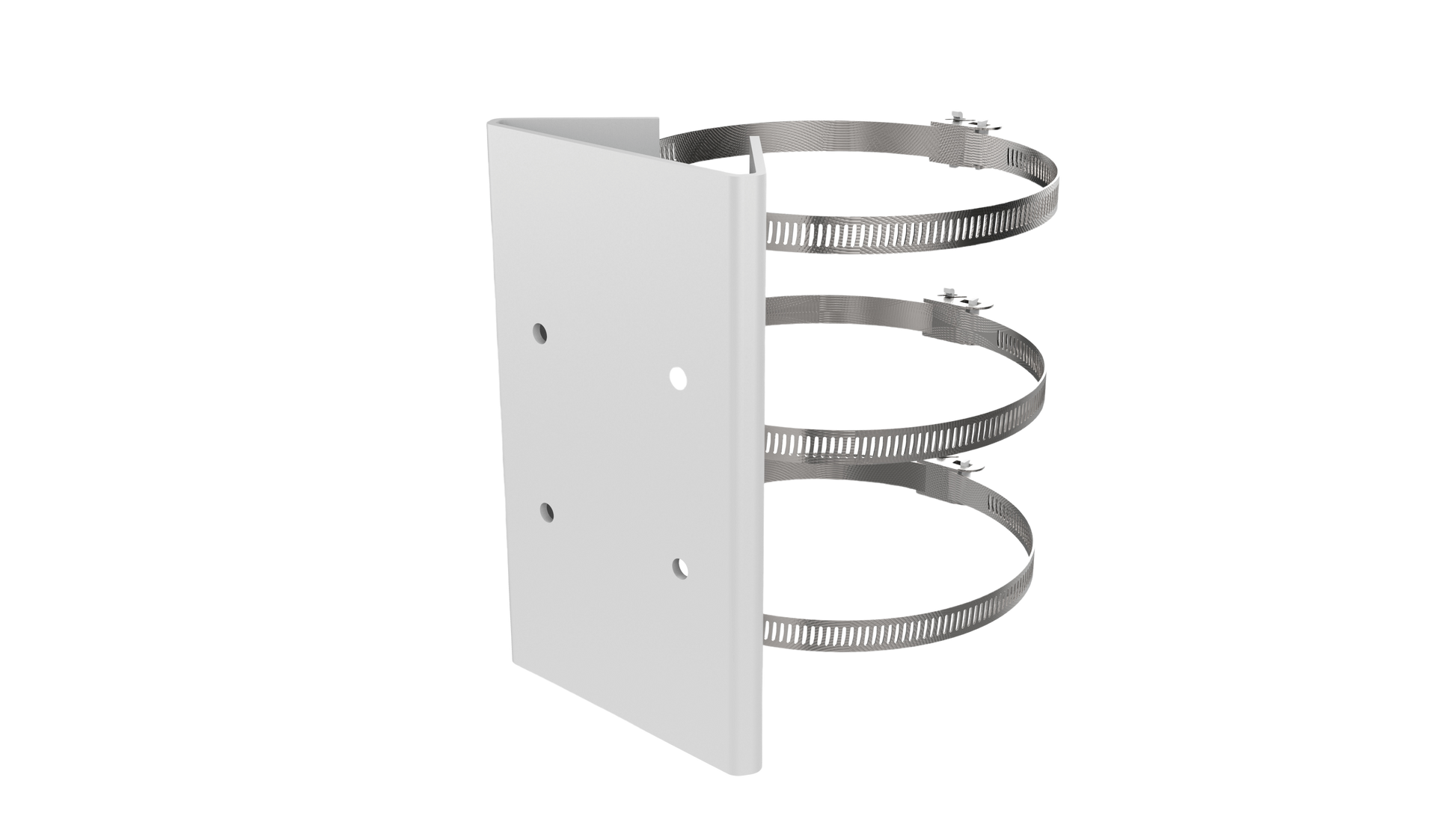

The Hikvision DS-1673ZJ is a high-strength horizontal pole mounting bracket manufactured from a single piece of premium stainless steel and finished with a weather-resistant Hikvision White surface spray treatment. Specifically designed for mounting panoramic PanoVu and heavy speed dome PTZ network cameras, this 1.06 kg (2.34 lbs) outdoor-rated bracket features heavy-duty integrated steel clamps that adjust to wrap securely around horizontal structural pipes or poles ranging between 67 mm and 127 mm (2.64" to 5") in diameter. It is engineered to seamlessly cooperate with a camera's pendant mounting bracket, providing a rock-solid, vibration-resistant structural payload capacity that safely handles up to 20 kg (44 lbs). To ensure safe installation, the targeted horizontal pipe must be rated to support at least three times the total weight of both the camera and this bracket combined, and waterproofing rubber gaskets must be deployed during setup to maintain an airtight seal against severe outdoor environments.
