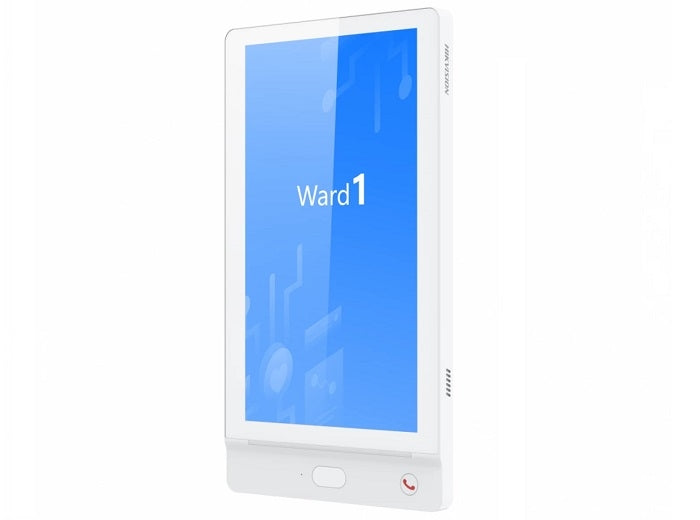

DS-KHD9800X-W - 15.6-inch IP Corridor and Doorway Terminal Intercom
Designed to serve as an intelligent, high-visibility doorway information display and emergency backup communication station placed outside patient rooms within smart hospital wards and healthcare facility nurse call systems.
DS-KHD9800X-W - 15.6-inch IP Corridor and Doorway Terminal Intercom is backordered and will ship as soon as it is back in stock.
Pickup available at Noctoptics - Laval
Usually ready in 2-4 days
DS-KHD9800X-W - 15.6-inch IP Corridor and Doorway Terminal Intercom
DS-KHD9800X-W - 15.6-inch IP Corridor and Doorway Terminal Intercom is backordered and will ship as soon as it is back in stock.
Description
The Hikvision DS-KHD9800X-W is a 15.6-inch doorway terminal for hospital and care-home rooms, part of Hikvision's nurse call system. Mounted outside the room, it shows who's inside and who's caring for them, and lets staff call for backup with one button.
- Information at the door: a 15.6-inch screen shows doctor, nurse and patient information.
- One-button backup call to the nurse station.
- Visual alerts: lights and messages flag active calls and alarm events.
- Simple wiring: powered by PoE or 12 VDC.
Key specs
- Screen: 15.6-inch
- System: Android 10, 2 GB RAM, 4 GB ROM
- Power: 12 VDC or PoE, 10 W max
- Size: 243.4 × 428.6 × 28.8 mm
Works with
Use it with Hikvision bedhead terminals such as the DS-KHH9530X-H and a Hikvision nurse station.
