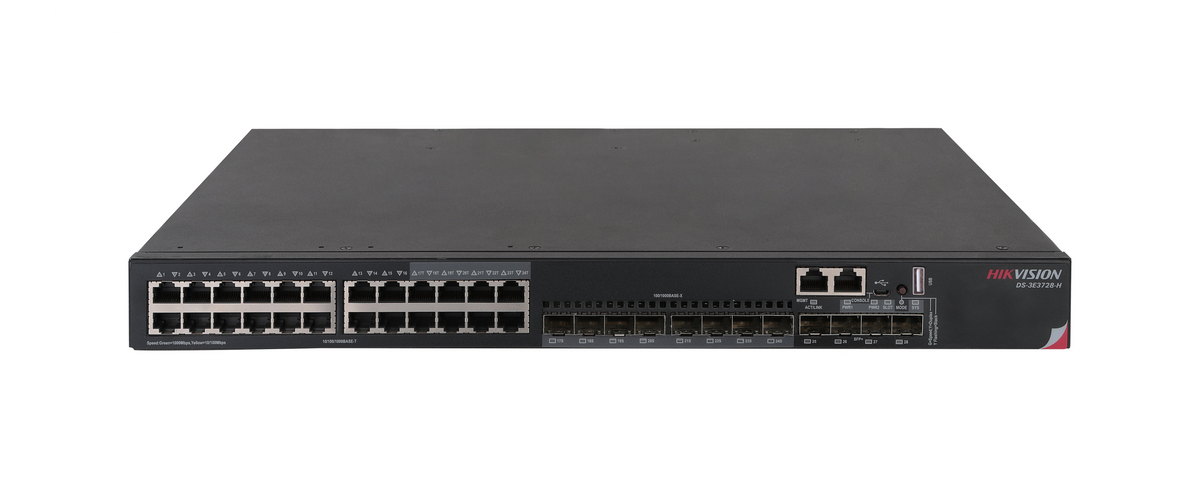

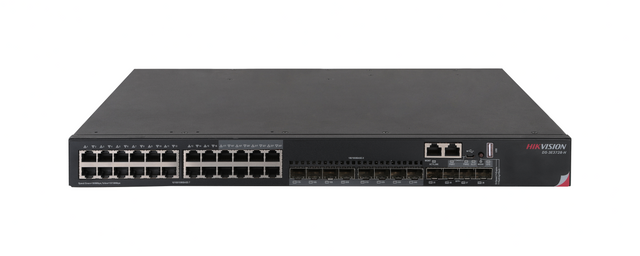

DS-3E3728-H - 28-Port Enterprise Layer 3 Core Network Switch

The Hikvision DS-3E3728-H is a 28-port Layer 3 core switch for the backbone of medium and large networks, including surveillance networks with many cameras and recorders. It combines 24 Gigabit ports with 4 10G uplinks and an expansion slot.

• High port density: 24 Gigabit copper ports (8 of them combo ports) plus 4 10G/1G SFP+ uplinks.
• Layer 3 routing: IPv4/IPv6 dual stack, multicast and policy-based routing.
• No single point of failure: stacking lets a backup switch take over if the master fails, without interrupting traffic.
• Redundant power: two hot-swappable power module slots for AC or DC power, with fault alarms.
• Secure links: MACsec encryption and link redundancy (LACP, STP/RSTP/MSTP, Smart Link).

Key specs

• Ports: 24 × 10/100/1000BASE-T (8 combo), 4 × 10G/1G SFP+, 1 expansion slot
• Switching capacity: 288 Gbps
• Power: 100–240 VAC or −48 to −60 VDC power modules
• Size: 1U rack (440 × 360 × 43.6 mm)
• Operating temperature: 0 °C to 45 °C

Buying in Canada

Ships across Canada from Laval, Quebec. Designing a network backbone? Email sales@noctoptics.com to confirm the power modules and SFP+ optics you need. Installers can open a dealer account for dealer pricing.
