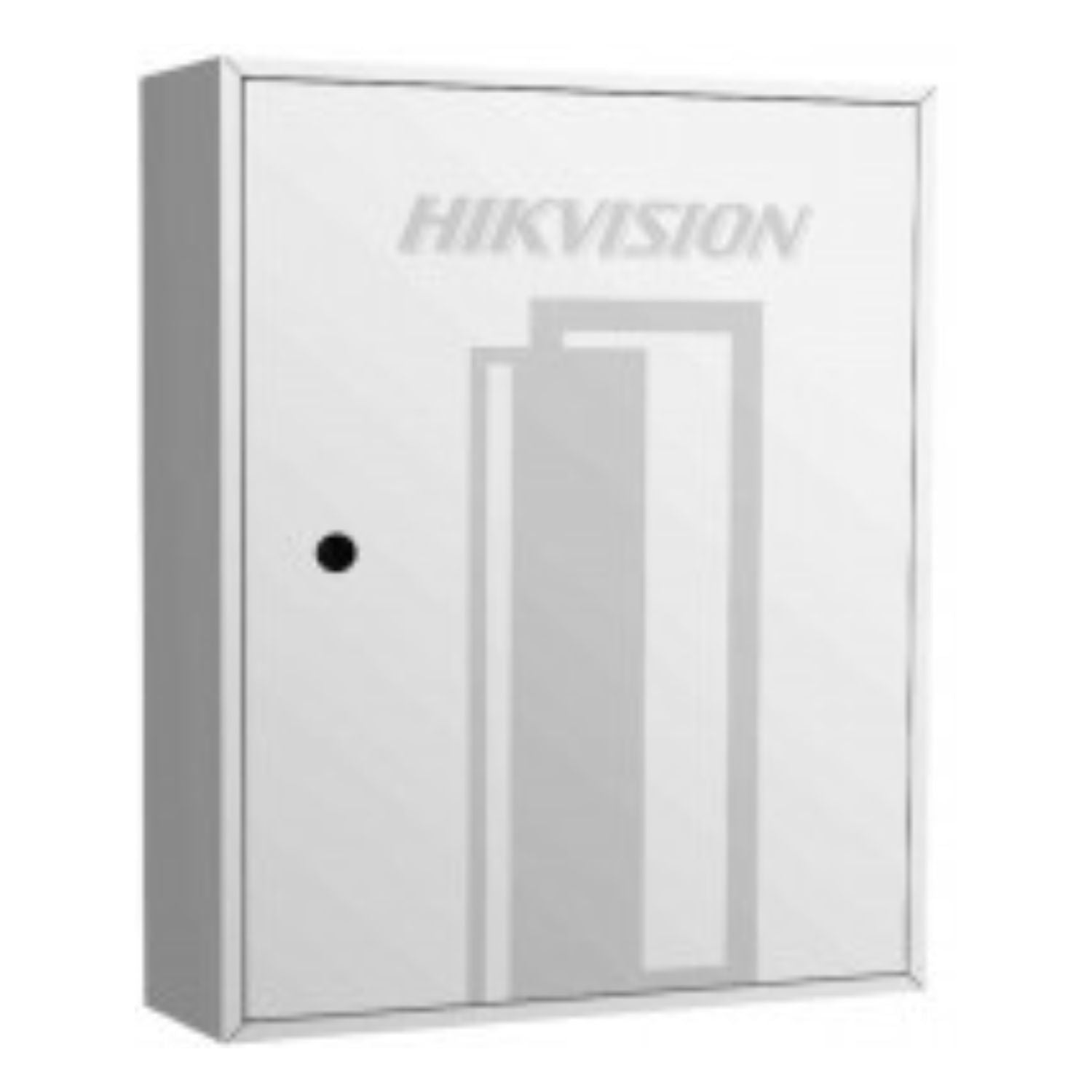

DS-TPM400-P(3T) - Video Parking Guidance Terminal

The Hikvision DS-TPM400-P(3T) is the video guidance terminal at the heart of a camera-based parking guidance system. It powers and connects the parking space cameras, stores their video, and drives the LED signs that show drivers how many spaces are free.

• Connects up to 16 dual-lens or 32 single-lens parking cameras, with built-in Hikvision PoE to power them.
• Drives the guidance signs: controls LED displays showing remaining spaces, online or offline.
• Stores the footage: six 3.5" drive bays, for up to 30 days of recordings; this model ships with 3 TB.
• Scales with the site: terminals can be cascaded and upload data to the central platform.
• Easy setup: automatic IP address allocation and web-based configuration.

Key specs

• Camera inputs: 16 dual-lens or 32 single-lens parking cameras
• Network: 16 internal 100M ports (8 with Hikvision PoE), 4 external Gigabit ports
• Storage: 6 × 3.5" HDD bays
• Interfaces: 2 RS-485, USB 2.0 and USB 3.0, optical interface
• Power: 110 V or 220 V
• Operating conditions: −10 °C to 50 °C

Works with

Parking guidance cameras such as the DS-TCP440-B(E) and DS-TCP440-DB(E), and indoor guidance screens like the DS-TVL121-6-5D. See all parking products.

Buying in Canada

Ships across Canada from Laval, Quebec. Planning a parking guidance project? Email sales@noctoptics.com. Installers can open a dealer account for dealer pricing.
