DS-A71024R - 24-slot economic Storage
The DS-A71 series is an economical and reliable Hybrid SAN (Storage Area Network) product. Hikvision Hybrid SAN product creates a network with access to data storage servers, and it integrates Hikvision’s unique video direct streaming technology as well as supports IPSAN. Hybrid SAN system supports third-party cameras such as BOSCH, AXIS, SONY, Samsung, etc., and supports RTSP and SIP protocols, and extended data retention. With no recording server needed, Hikvision’s Hybrid SAN systems truly make applications simple, flexible, and budget-friendly.
DS-A71024R - 24-slot economic Storage is backordered and will ship as soon as it is back in stock.
DS-A71024R - 24-slot economic Storage
DS-A71024R - 24-slot economic Storage is backordered and will ship as soon as it is back in stock.
Description

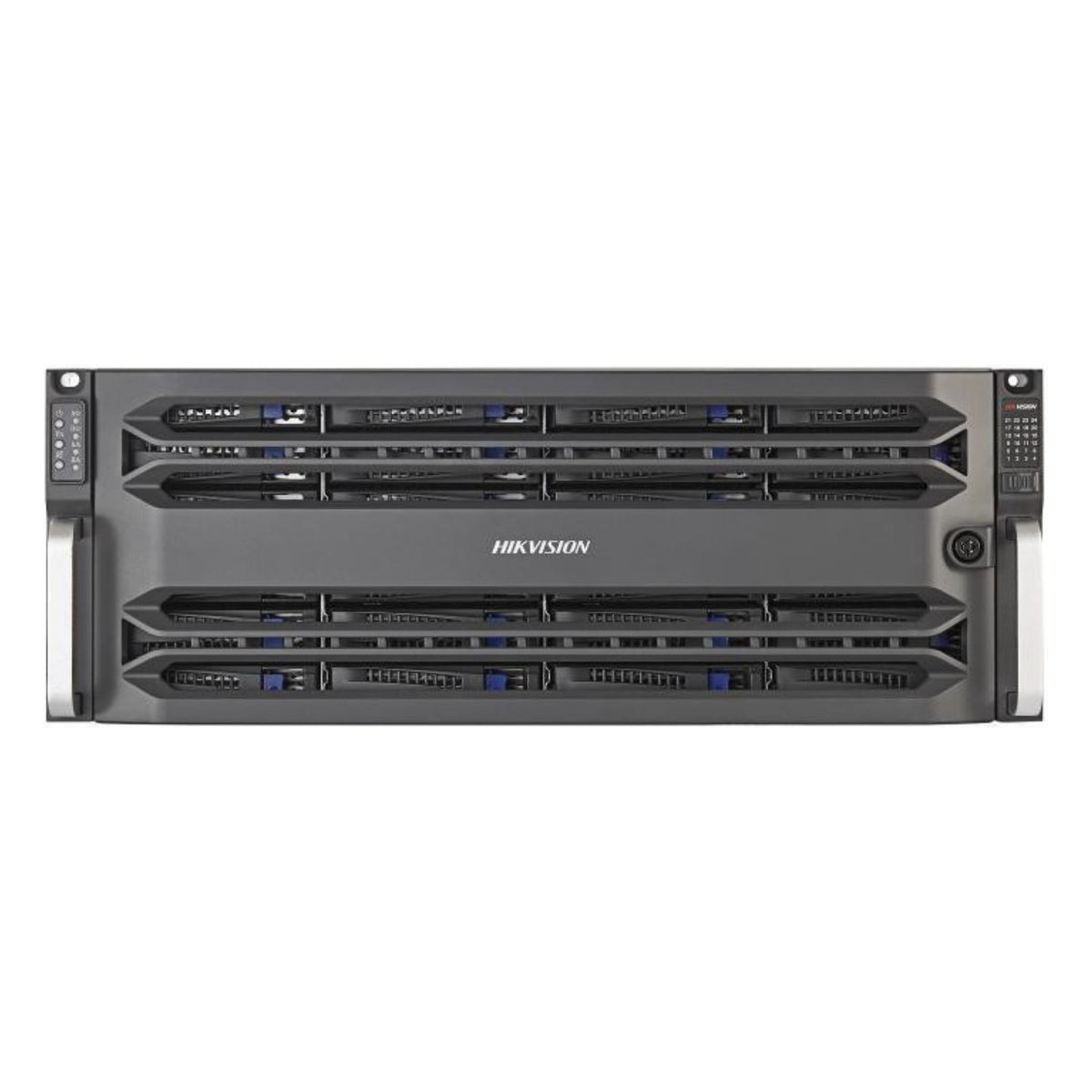

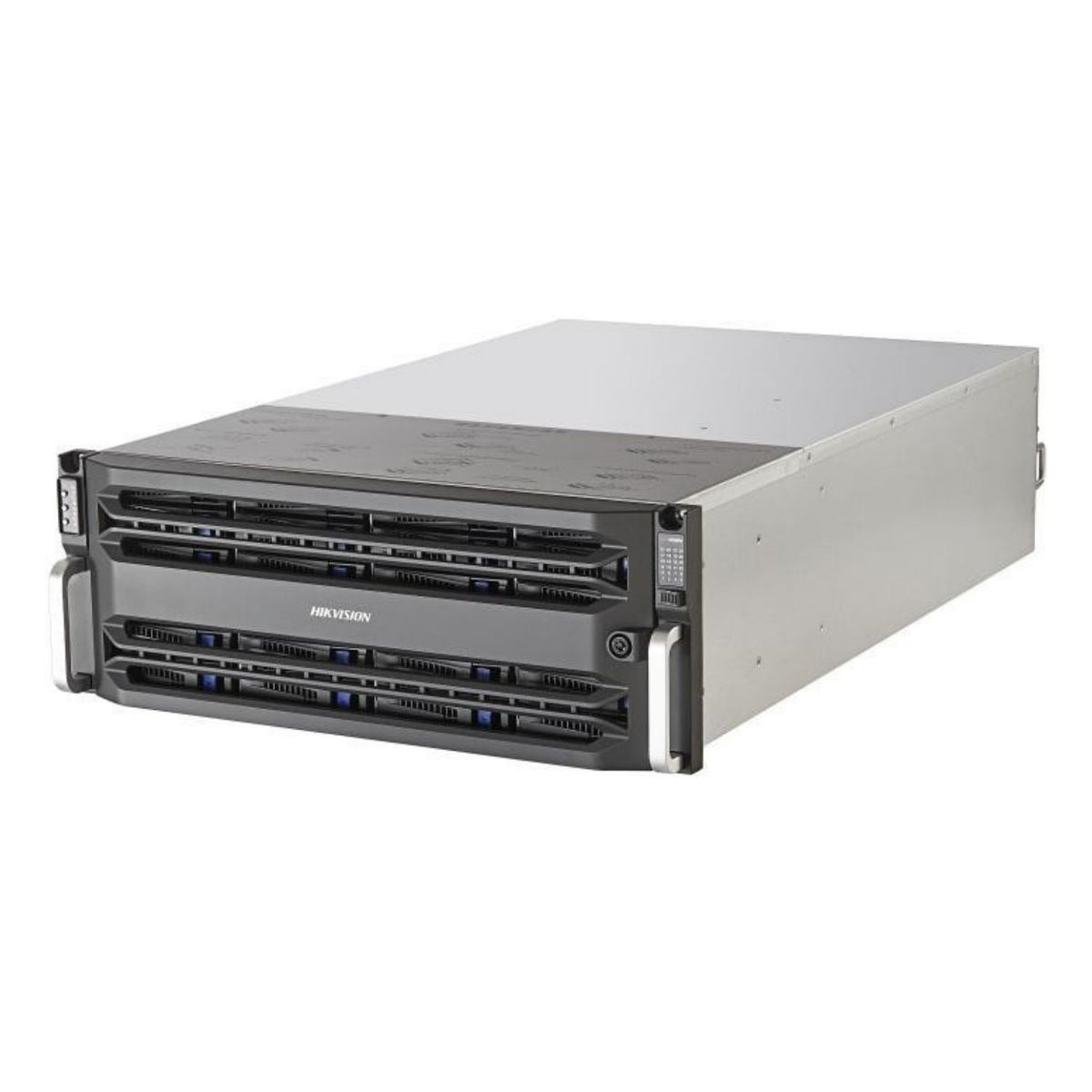

The Hikvision DS-A71024R is a 24-bay Hybrid SAN storage system that records cameras directly, without a separate recording server. It suits large sites that need long retention and protected storage.
- Records straight from cameras in Direct Streaming mode, or works as an IP SAN.
- Big capacity: 24 hot-swappable SATA bays, up to 16 TB per drive.
- Protects footage: RAID 0, 1, 3, 5, 6, 10 and 50, JBOD and hot spare.
- Open to other brands: third-party cameras through RTSP, ONVIF and PSIA.
- Keeps running: redundant power supplies and backup of key system information.
Key specs
- Performance: 320 channels recording + playback in Direct Streaming mode (2 Mbps streams); 180 channels in IP SAN mode
- Drive bays: 24 × SATA, hot-swappable
- Protocols: iSCSI, RTSP, ONVIF, PSIA
- Chassis: 4U
Works with
See all network video recorders.
