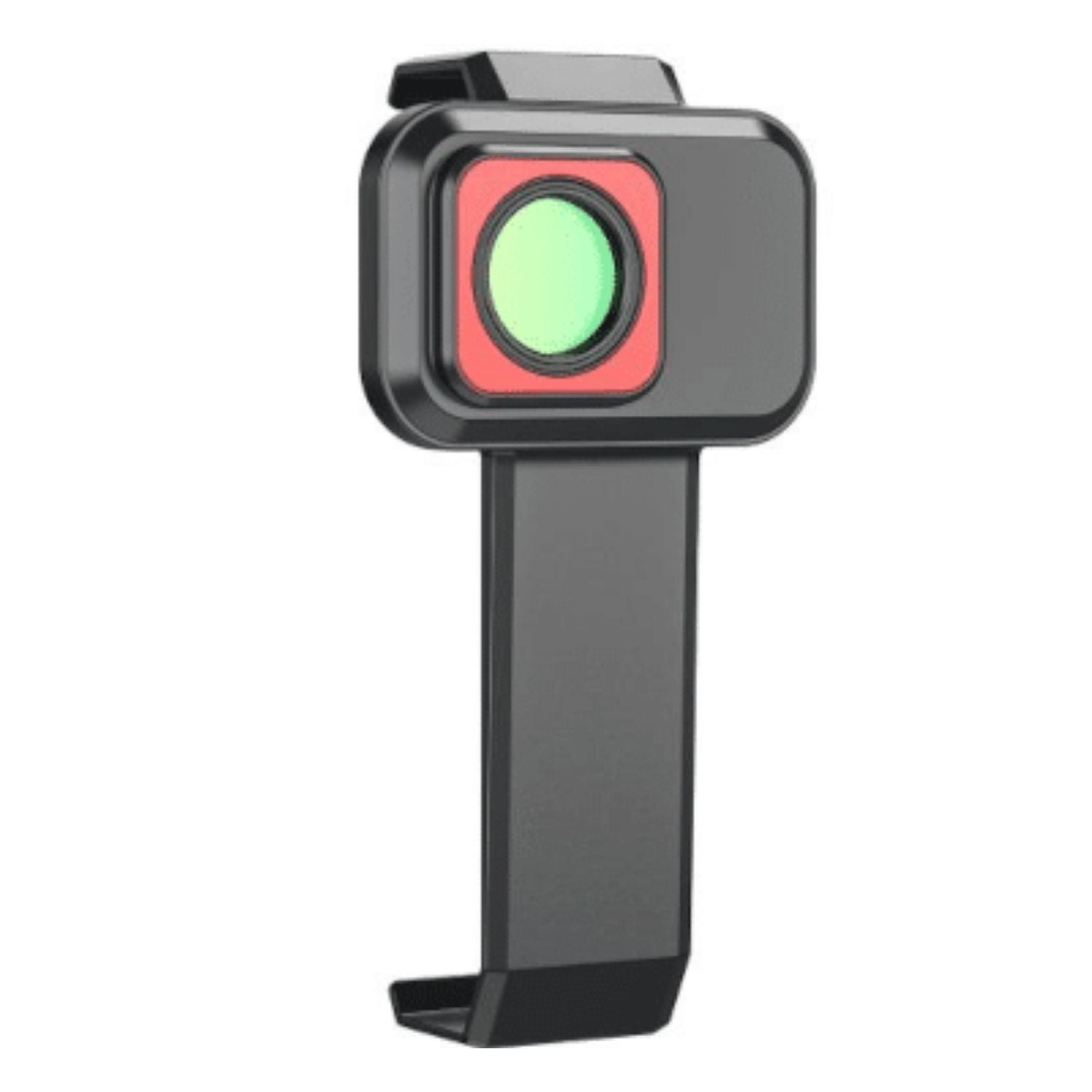

HM-P201- MACRO - HikMicro P201-MACRO - Pocket Series Macro Lens

314200118

HM-P201- MACRO - HikMicro P201-MACRO - Pocket Series Macro Lens

HM-P201- MACRO - HikMicro P201-MACRO - Pocket Series Macro Lens

The Hikmicro HM-P201 thermography camera macro lens enables the identification of potential design flaws, assessment of PCB hot spots, and inspection of small electronic components. It effortlessly attaches to Hikmicro Pocket-series thermal imaging cameras.

$92.99 CAD
$92.99 CAD
Sold out
View full details

Description

  • Magnification: 0.12x
  • Focal Length: 4.1 mm
  • FOV (Field of View): 47.6 degrees (H) x 36.1 degrees (V)
  • IFOV (Spatial Resolution): 2.93 mrad
  • Object temperature range: -20°C to 50°C (-4°F to 122°F)
  • Accuracy: Max. (± 3°C/5.4°F, ± 3%), for object temperature between 0°C (32°F) to 150°C (302°F)
  • Focusing distance: 30 mm ± 1 mm (1.18” ± 0.04”)
  • Minimum imaging object size: 100 μm × 100 μm
