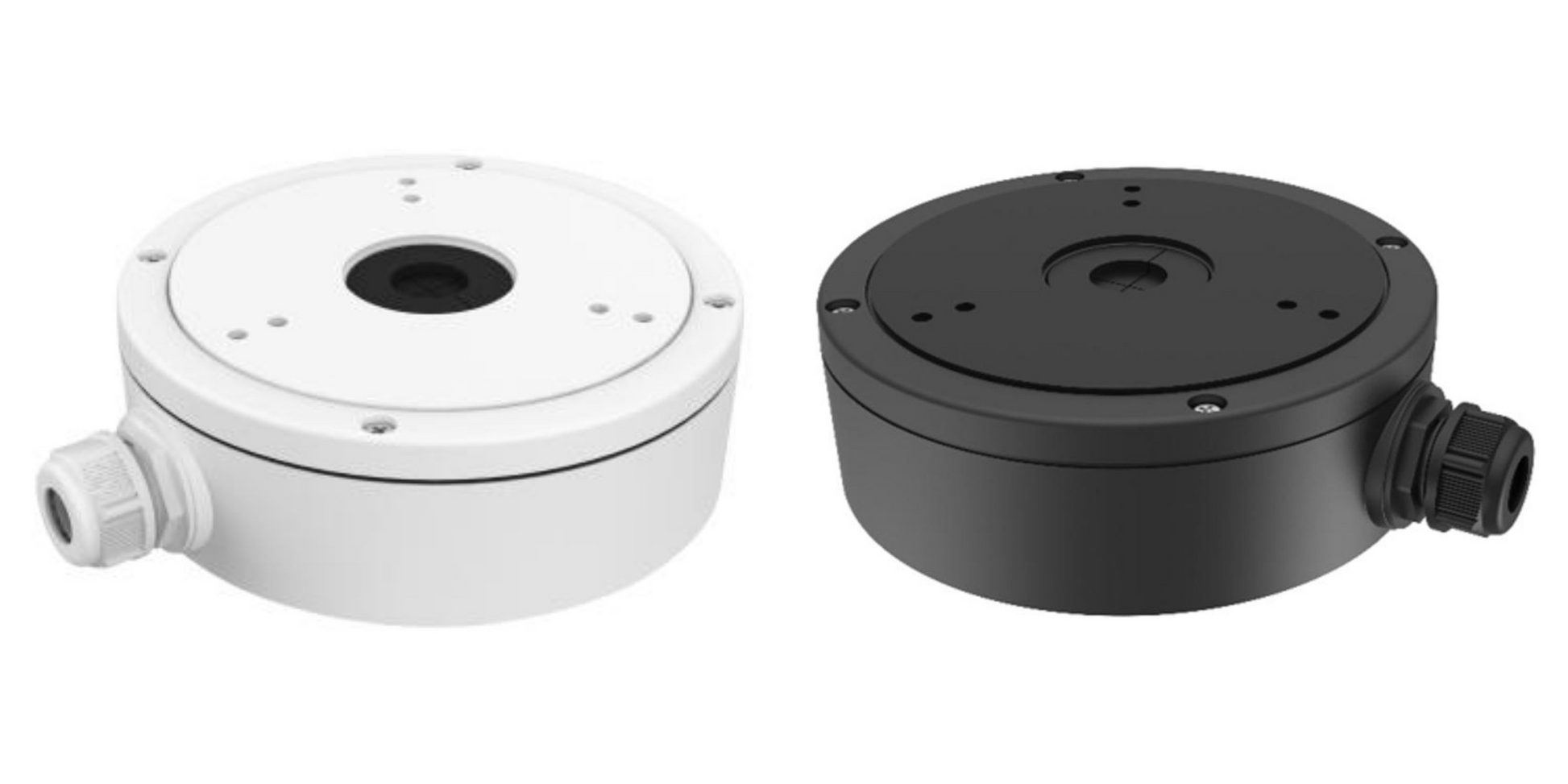

The Hikvision CBM is a medium-duty junction box expertly molded from a rugged aluminum alloy and finished in a weather-resistant Hikvision White surface spray finish. Measuring Φ157 mm × 184.8 mm × 51.5 mm (6.18" × 7.28" × 2.03") and weighing approximately 621 grams (1.37 lbs), this robust conduit base incorporates both side and bottom outlets to seamlessly guide incoming cable paths. It features an interchangeable bottom waterproof cover and a secure side gland nut, providing an essential IP66-rated, tamper-resistant internal cavity that completely encapsulates network pigtails and power wires. This versatile mount safely applies to both indoor and outdoor conditions, providing a stable maximum load capacity of 4.5 kg (9.92 lbs) when mounted securely to flat ceilings or wall structures.
