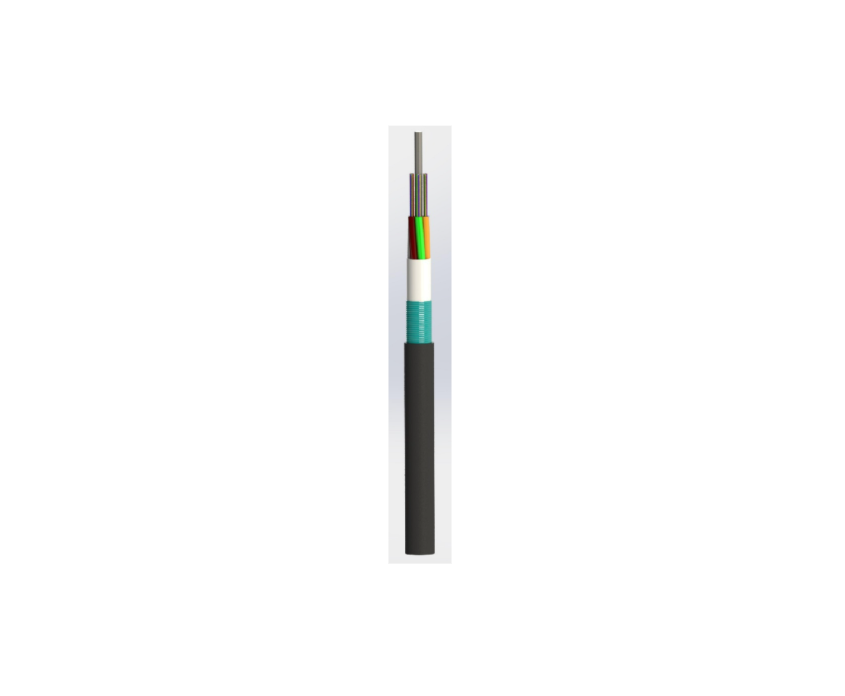

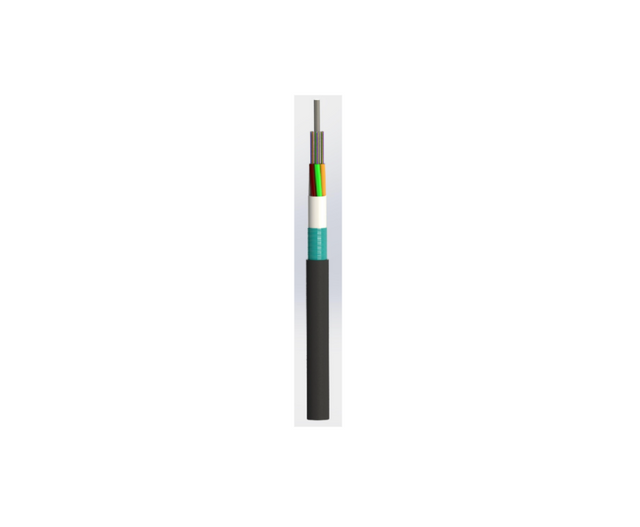

DS-QFV-CKS4L - 1m 4-Core Single Mode Flame Retardant Optical Fiber Cable

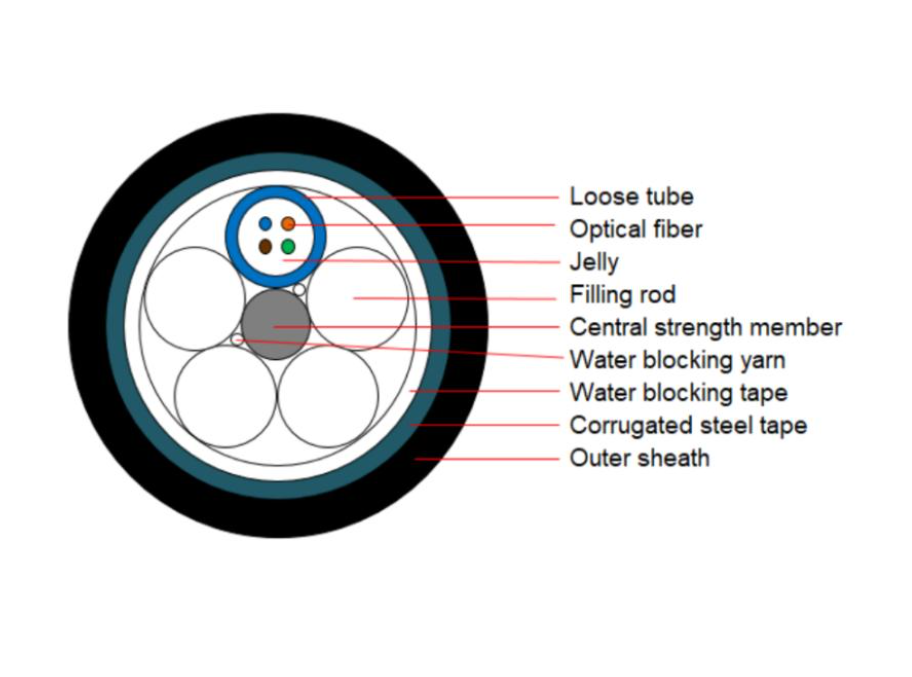

The Hikvision DS-QFV-CKS4L is a 4-core single-mode, flame-retardant optical fiber cable engineered with a robust loose tube, jelly-filled construction surrounding a metallic central strength member. Armored with a protective steel tape layer and encased in a Low Smoke Zero Halogen (LSZH) outer sheath, it features low transmission loss with an attenuation of ≤0.360 dB/km at 1310 nm and ≤0.220 dB/km at 1550 nm. It is structurally built to handle dynamic installations with a minimum bending radius of 20 times the cable diameter (and 10 times statically), ensuring structural data integrity while resisting extreme environmental hazards like moisture, temperature variations, ammonia, chlorine, salt spray, acid rain, and ultraviolet rays.
