HIKVISION

DS-QFV-CKS4L/3000M - 3000m 4-Core Single Mode Flame Retardant Optical Fiber Cable

Model DS-QFV-CKS4L/3000M Part no. 336200023

Designed to provide high-bandwidth, long-distance fiber data transmission across large perimeters in harsh, hazardous, or corrosive industrial environments requiring flame-retardant security.


Sale price $7,148.34 Regular price $7,524.57

Pickup available at Noctoptics - Laval

Usually ready in 2-4 days


Pickup in Lavalor shipping Canada-wide
Local warranty & RMAhandled here, not overseas
An installer on the line514 584 6628
Net-30 for dealerson approved accounts

Description

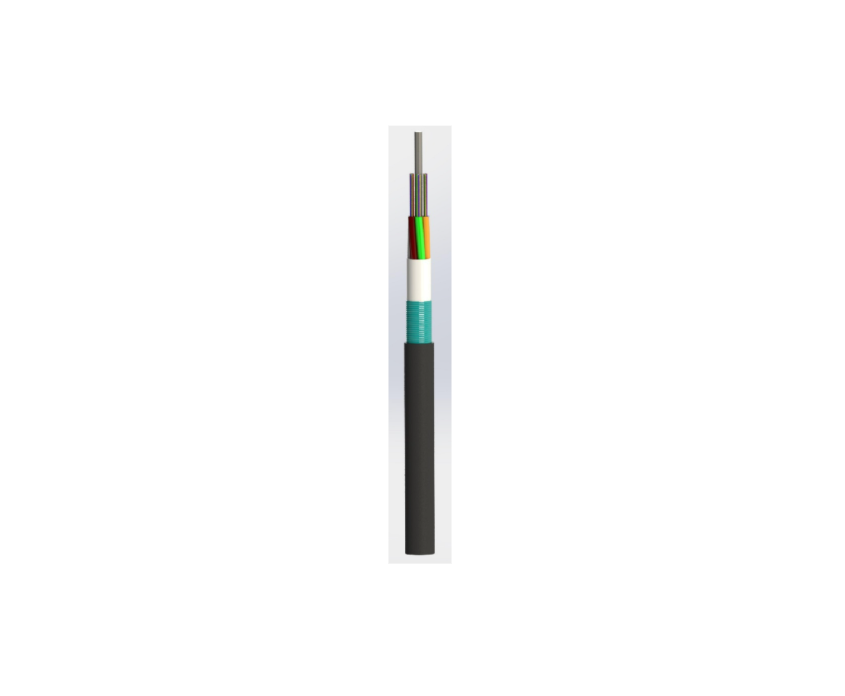

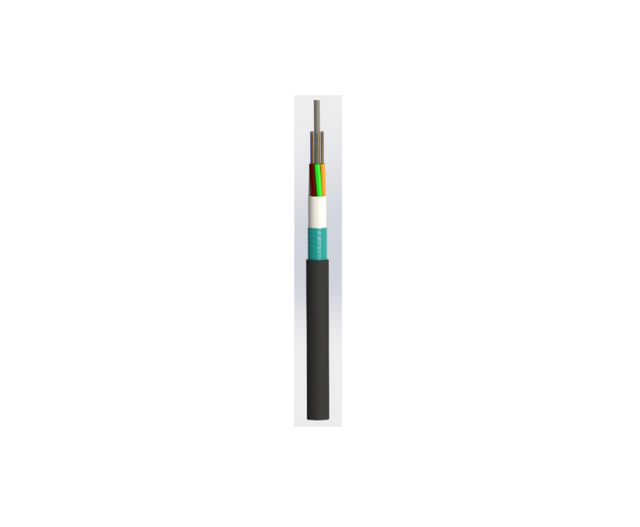

The Hikvision DS-QFV-CKS4L/3000M is a 3,000 m reel of armoured, 4-core single-mode fibre cable with a flame-retardant LSZH jacket. Hikvision designed it for its fibre-optic perimeter sensing systems, and it suits long outdoor fibre runs that need strong protection.

  • Long runs: 3,000 m reel of 4-core single-mode fibre.
  • Low loss: 0.36 dB/km or less at 1310 nm, 0.22 dB/km or less at 1550 nm.

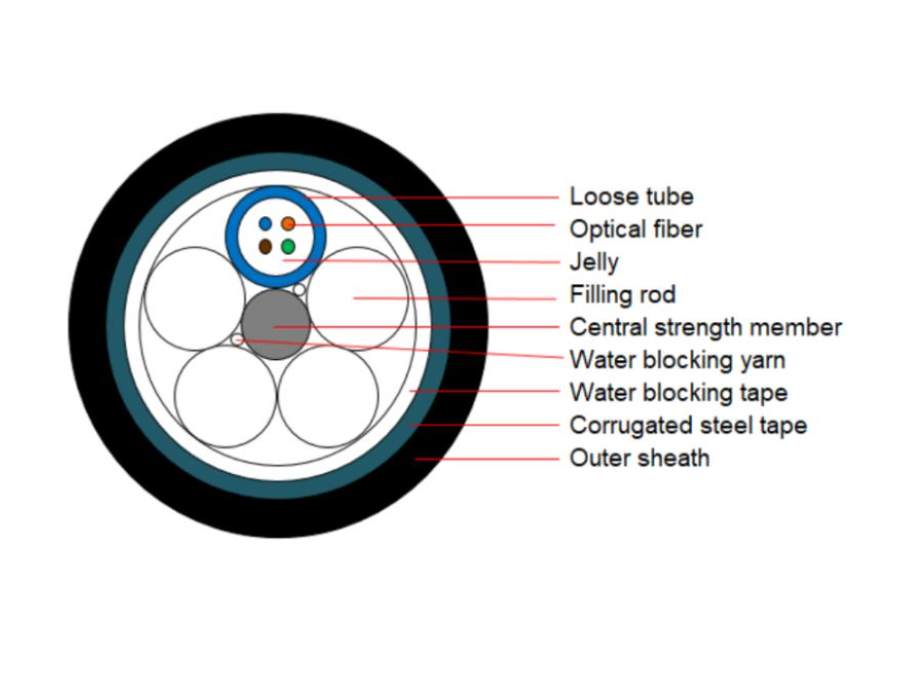

  • Tough construction: jelly-filled loose tubes, water-blocking yarn and tape, steel tape armour and a metallic central strength member.
  • Safer jacket: flame-retardant low-smoke zero-halogen (LSZH) outer sheath.
  • Built for harsh sites: resists moisture, temperature changes, ammonia, chlorine, salt spray, acid rain and UV.

Key specs

  • Fibre: 4-core single-mode
  • Length: 3,000 m
  • Bend radius: 10× cable diameter static, 20× dynamic
  • Temperature: −40 °C to 70 °C in operation; −20 °C to 60 °C during installation
