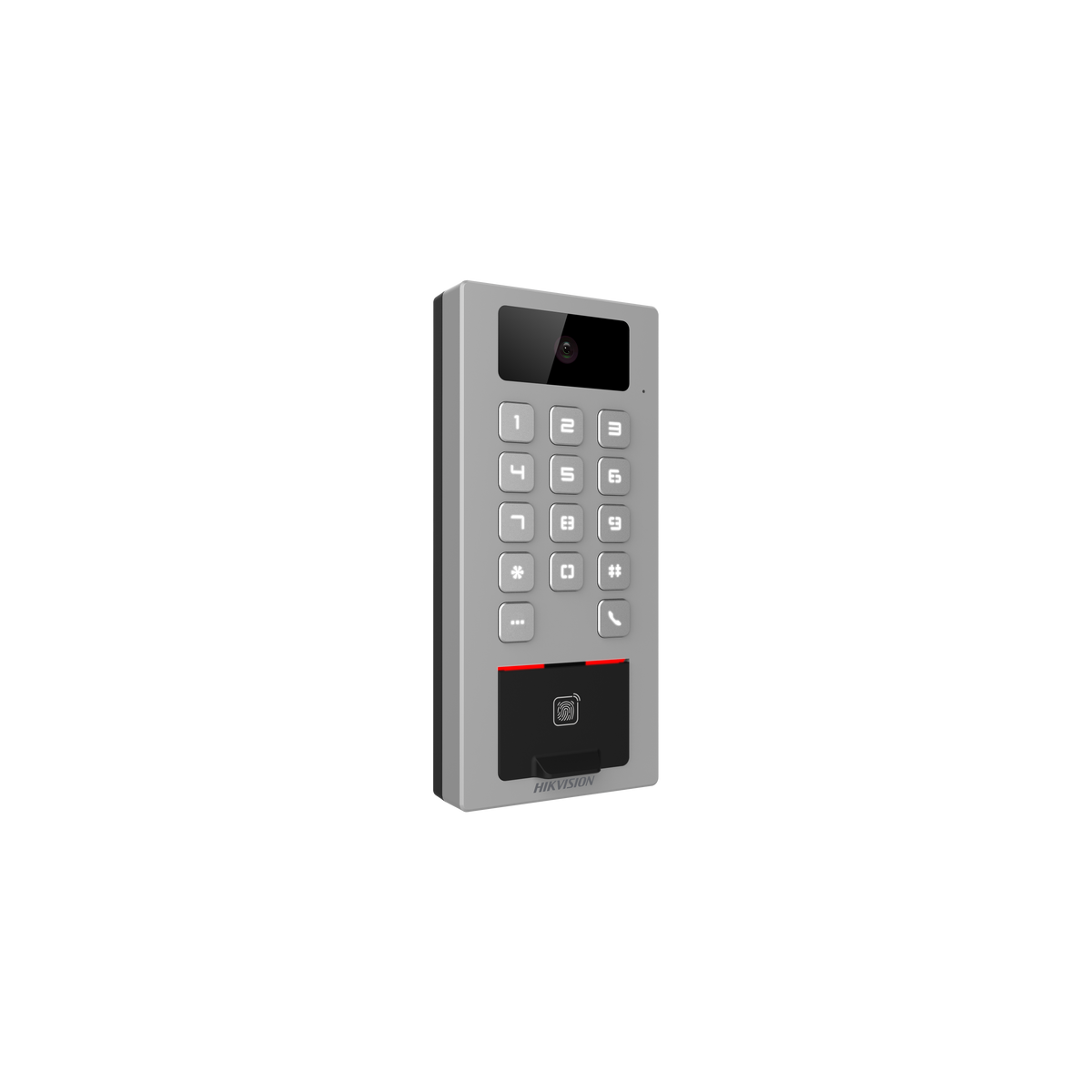

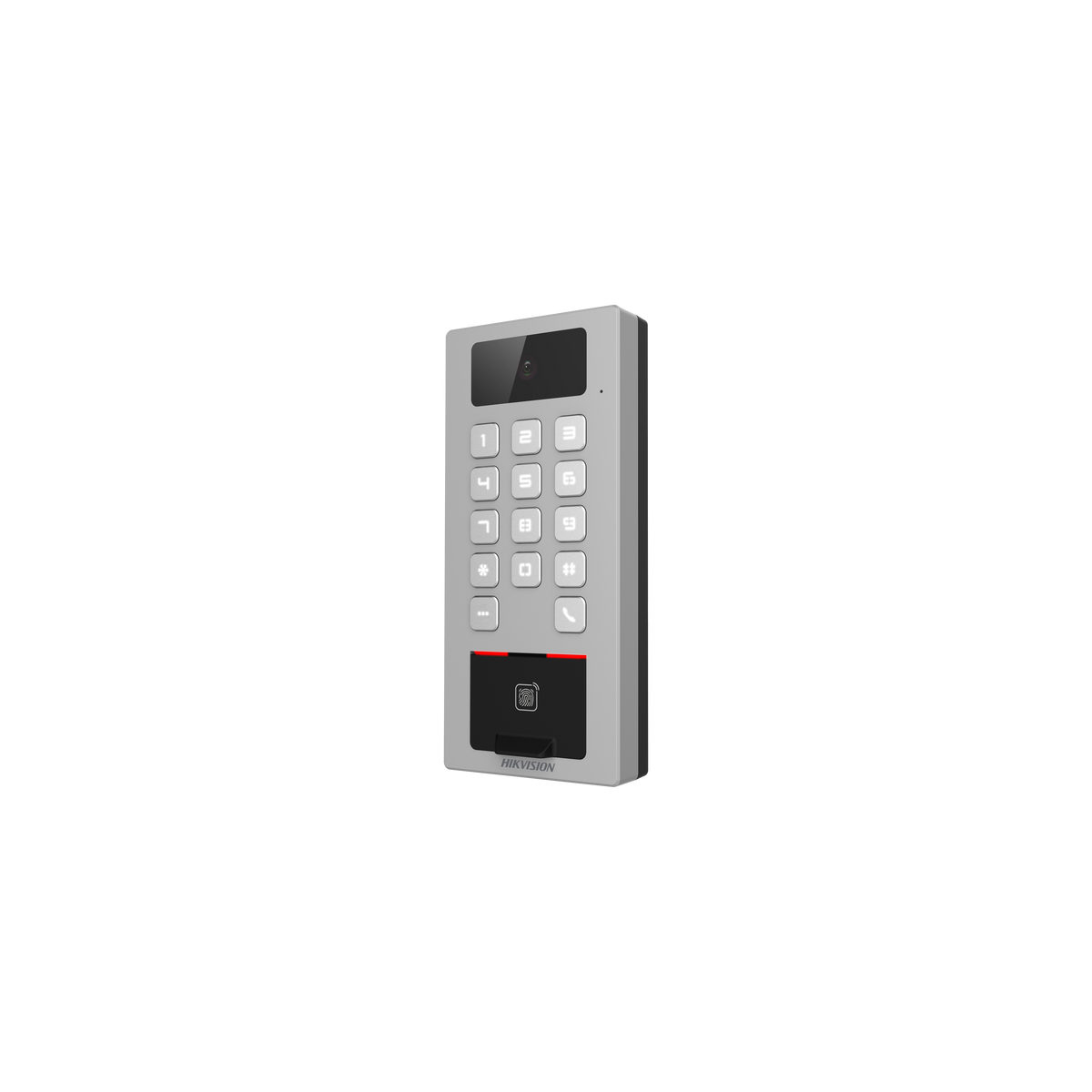

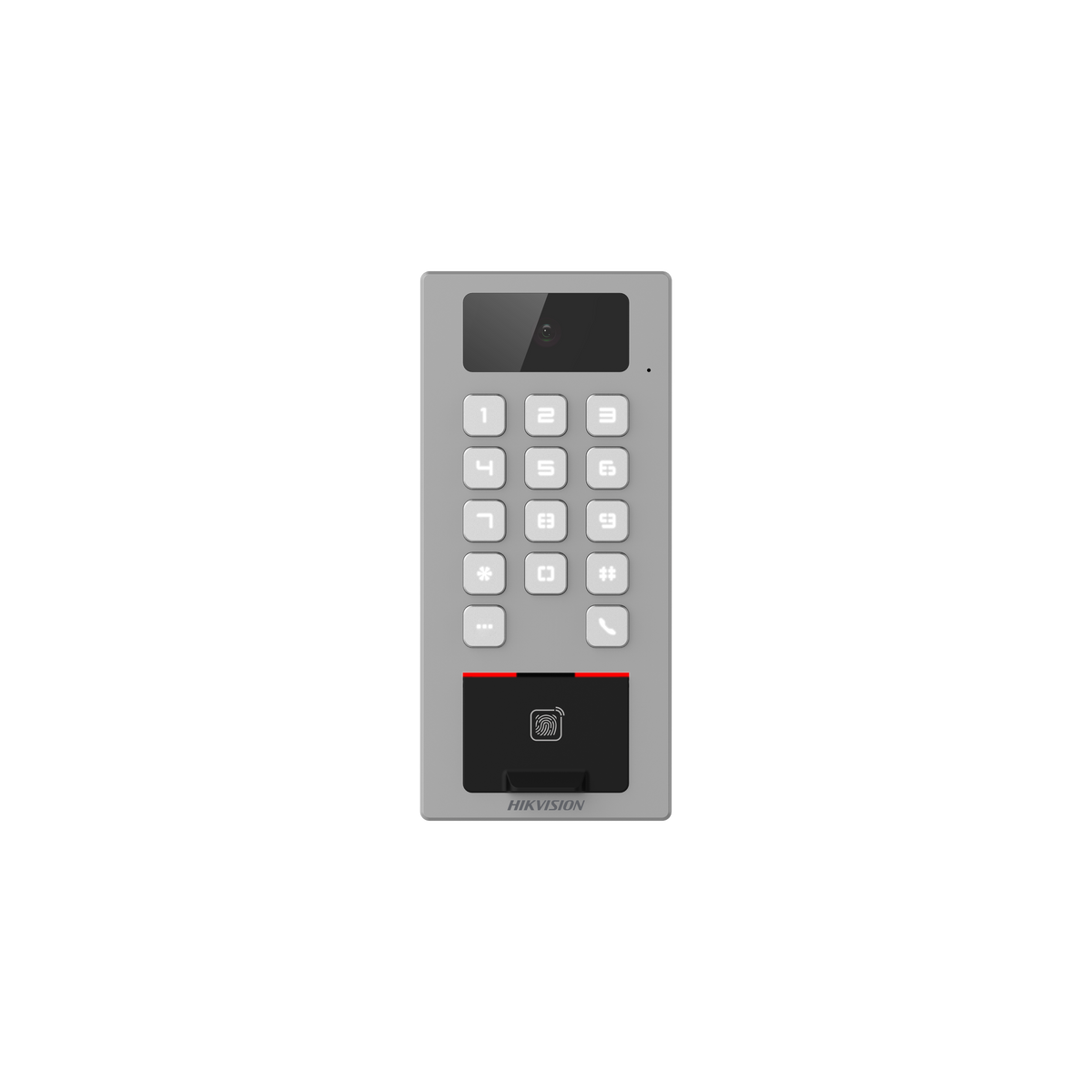

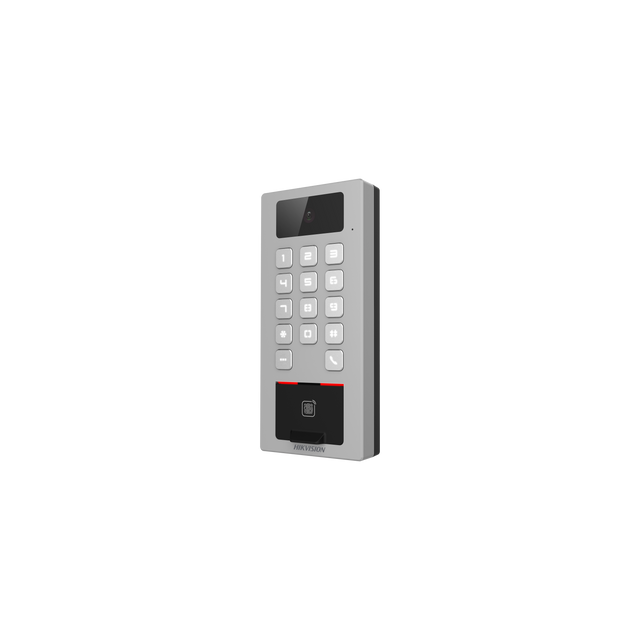

DS-K1T502DBFWX-C - Access Control Terminal

The DS-K1T502DBFWX-C is a rugged, multi-functional biometric entry and video intercom terminal manufactured by Hikvision, constructed from a heavy-duty zinc alloy housing that achieves an IP65 weatherproof and IK09 impact-resistance rating. Upgrading the series with an integrated optical fingerprint scanner, this all-in-one security hub features a built-in 2-megapixel HD camera, a physical keypad, and a multi-format smart card module. It authenticates users via fingerprint scans, proximity cards, PIN codes, or smartphone-based Bluetooth credentials. Operating over wired TCP/IP or onboard Wi-Fi with configurable network priority, the terminal serves as a full-featured video doorbell that can dial the central management software, indoor monitor stations, or the Hik-Connect mobile app. It simplifies complex building integration by supporting standard SIP 2.0 telephony routing (across servers like FreePBX, 3CX, and Asterisk), direct Wiegand communication to external master panels, RS-485 serial communication for smart elevator calling, local Access Point (AP) wireless programming mode, and expandable storage up to 256 GB via a local MicroSD card slot.
