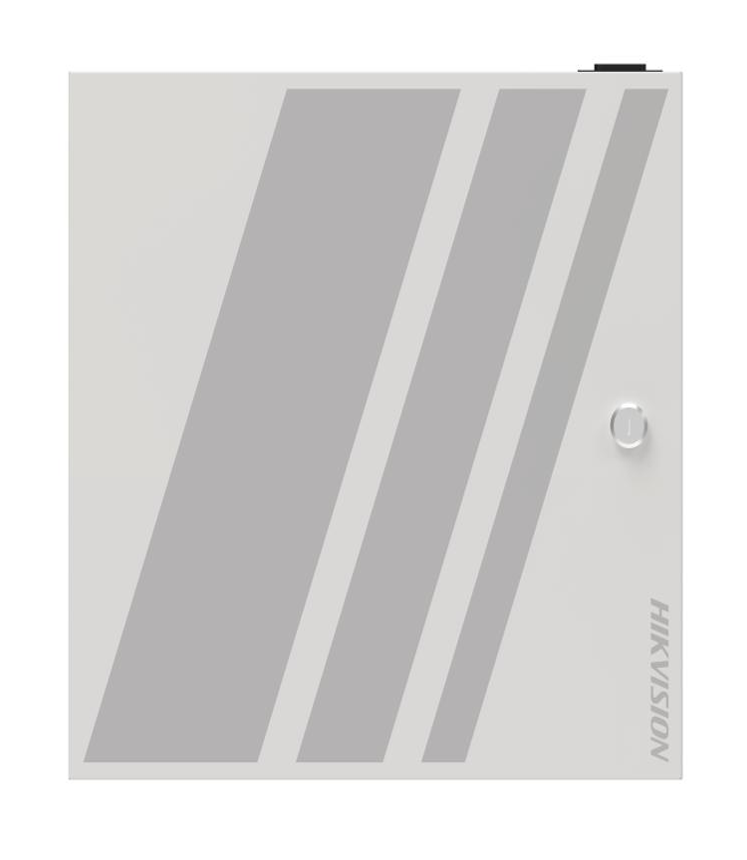

DS-K2M002X-E - Enclosure for DS-K2M002X Access Module

The DS-K2M002X-E is a rugged, lockable metal chassis and integrated power supply enclosure designed by Hikvision to centralize, protect, and power distributed door expansion modules. Measuring 345 mm × 360 mm × 88.3 mm (13.6" × 14.2" × 3.5") and weighing 3.04 kg (6.7 lbs) empty, this heavy-duty enclosure features pre-installed internal DIN guide rails that accommodate up to two separate modular control boards. The system incorporates a built-in 100W switching power supply with advanced battery charging and discharging circuits, providing stable power management and automatic battery backup switching for a complete 4-door secure layout. Front-facing LED diagnostics allow technicians to instantly monitor power health, uplink communication, system runtime, and individual door lock states through the locked cabinet door.
