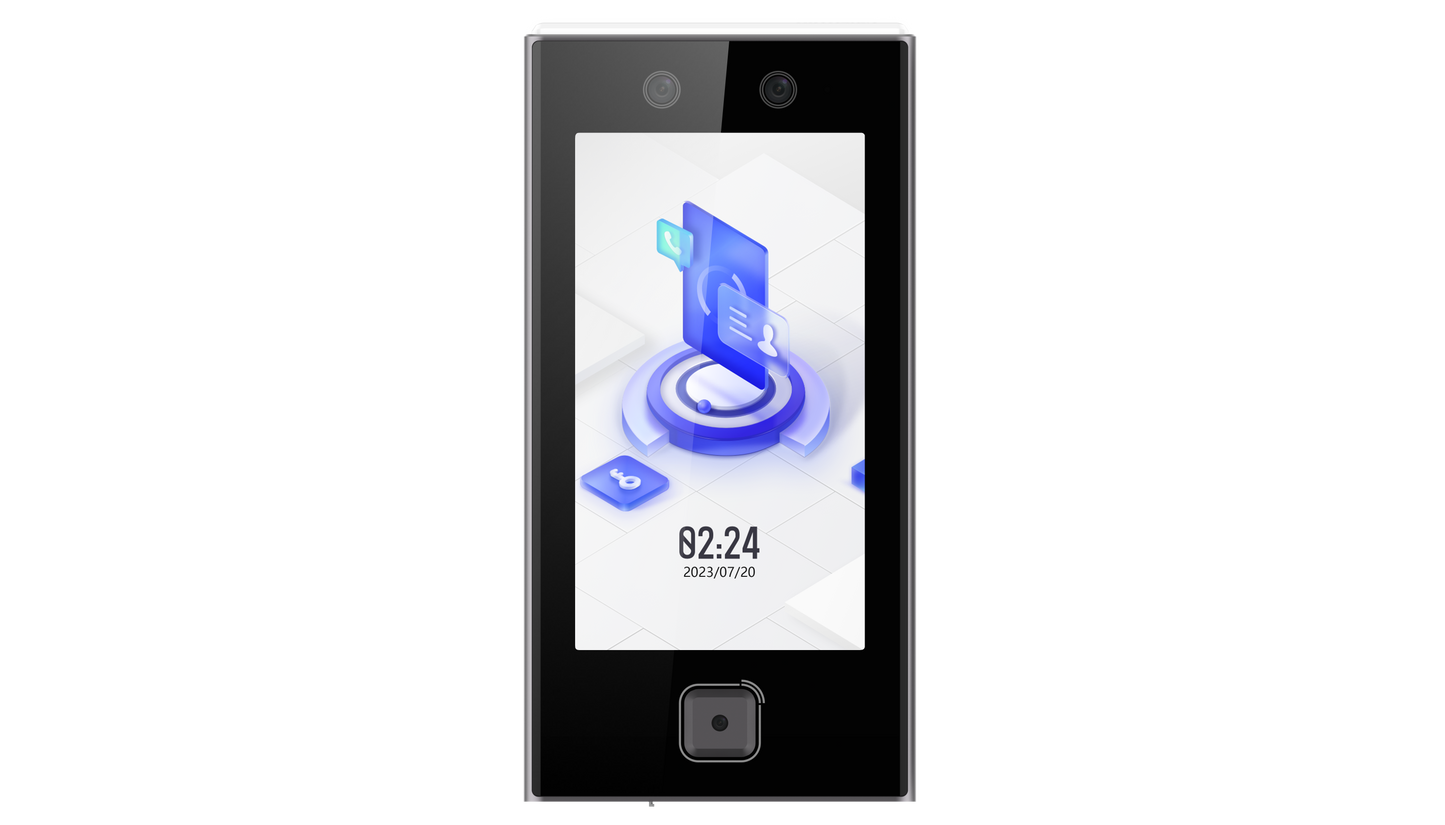

DS-K1T670MWX-QR - Face Recognition Terminal

The DS-K1T670MWX-QR is a high-capacity, enterprise-grade biometric access control and time-attendance terminal featuring a large 7-inch LCD touchscreen, a 2-megapixel wide-angle lens, and an integrated QR code reading engine alongside a built-in M1 smart card reader. Driven by deep-learning algorithms, it executes rapid face recognition for up to 5 people simultaneously in under 0.2 seconds with an accuracy rate exceeding 99% across an extended 0.3m to 3m range, managing a massive local database of 6,000 faces, 50,000 cards, and 150,000 local log events. The terminal interfaces directly with a secure door control unit via RS-485 to safely manage up to two separate doors using face, card, PIN, QR codes, or key fobs. It provides advanced protection filters like face mask detection and anti-spoofing face duplicate checks, dual-stack TCP/IP (IPv4/IPv6) connectivity, custom Wiegand parameter tuning, and extensive software integration hooks via ISAPI, ISUP 5.0, Push SDK, and native compatibility with popular SIP servers like Asterisk and 3CX.
