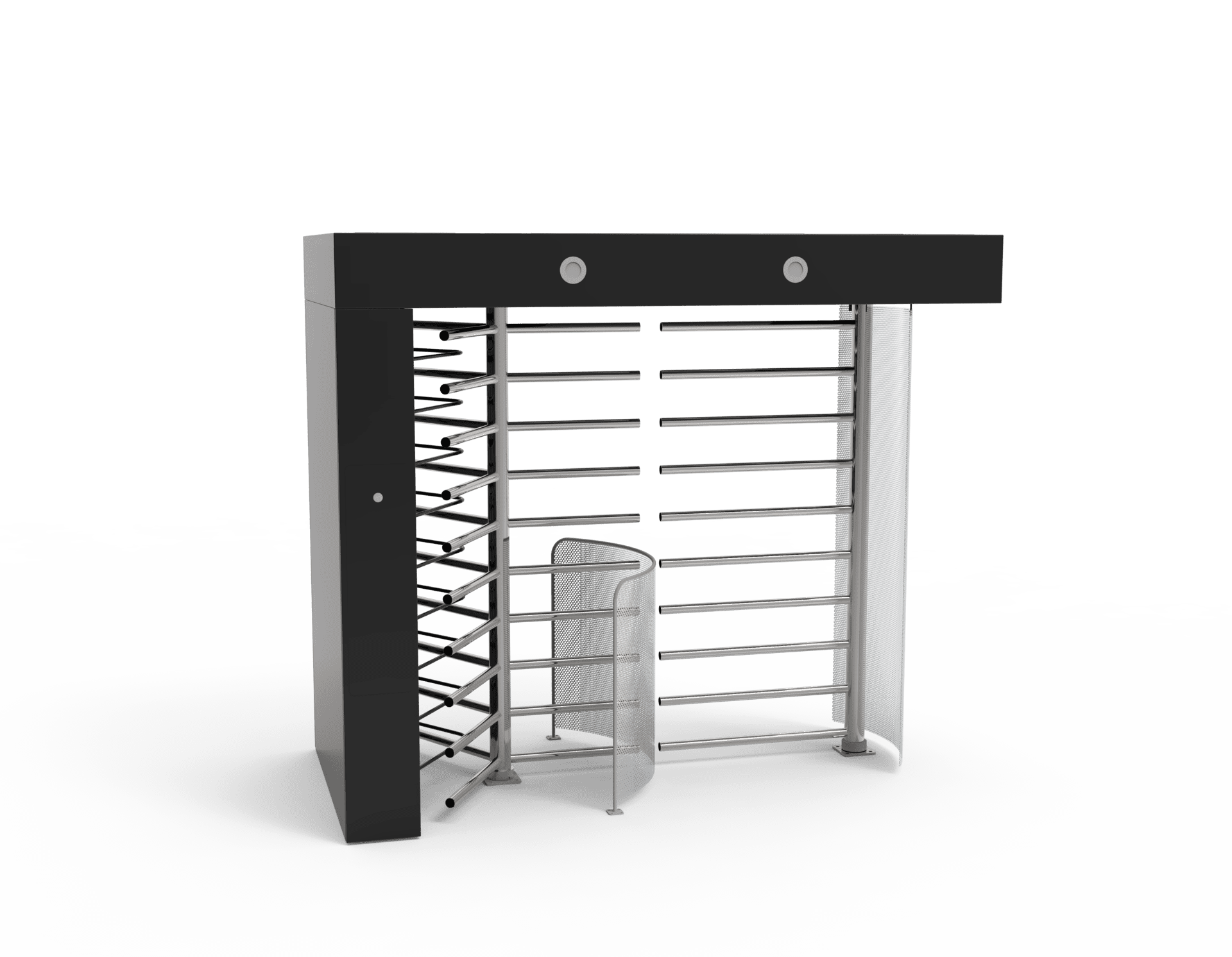

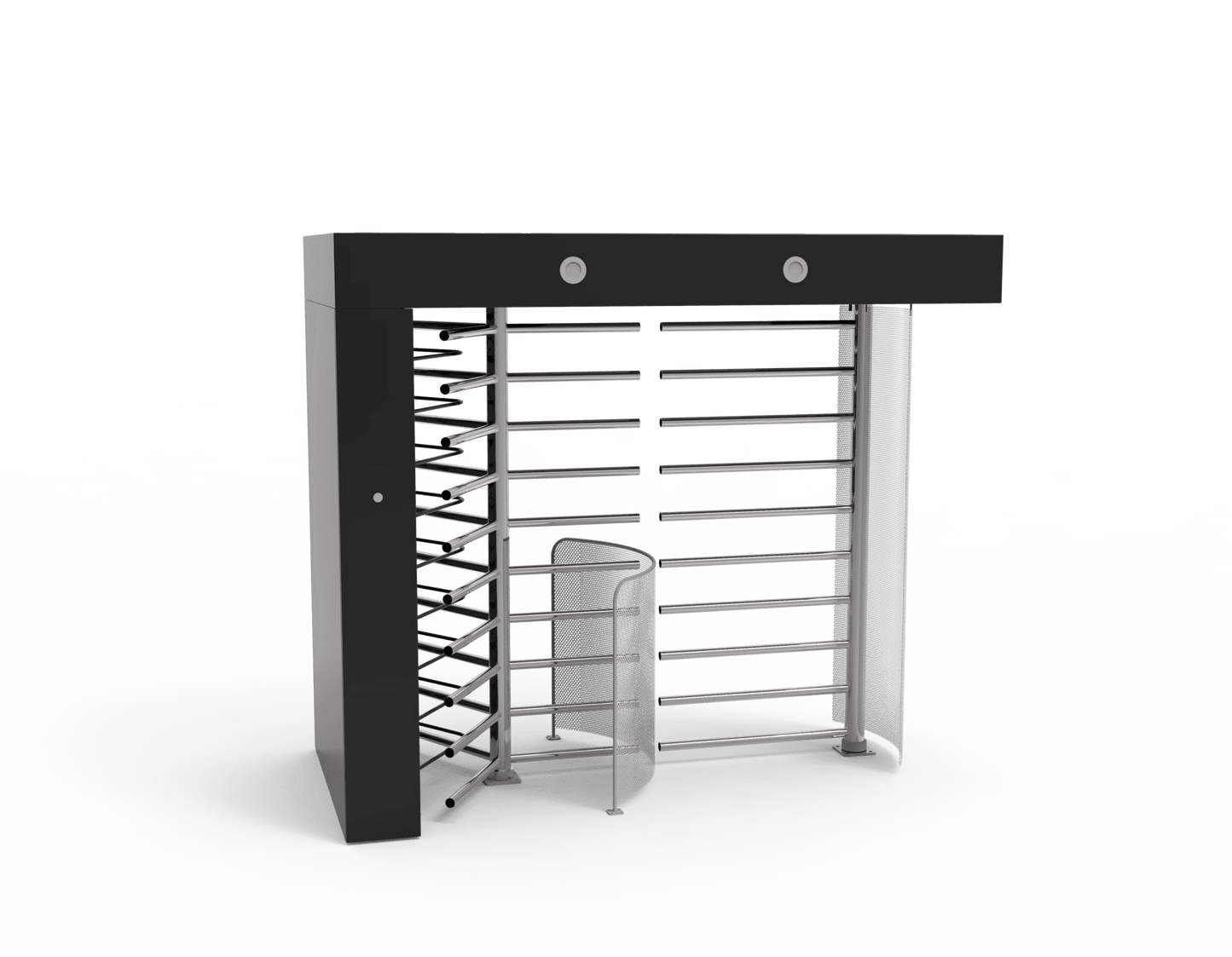

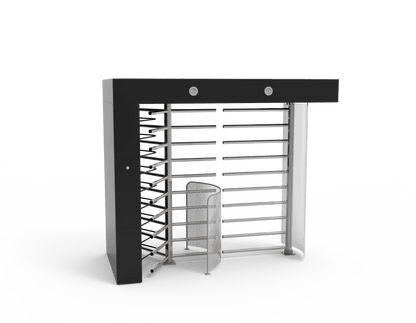

MISTER FLOW PMR
The MISTER FLOW PMR turnstile combines pedestrian access and a motorized bicycle gate in a single device. Its sleek design and customizable panels adapt to any environment, whether public or residential. Equipped with integrated LEDs, a screwless rotor, and an IP controller, it offers seamless, connected security. It's ideal for public facilities requiring accessible and intelligent access control.
Demander une soumission pour ce produit
Ce produit est configuré pour chaque site, alors nous ne publions pas de prix. Parlez-nous du projet et un représentant Noctoptics reviendra avec le prix, les options et le délai, normalement en un jour ouvrable.
Description
The MISTER FLOW PMR turnstile combines pedestrian access and a motorized bicycle gate in a single device. Its sleek design and customizable panels adapt to any environment, whether public or residential. Equipped with integrated LEDs, a screwless rotor, and an IP controller, it offers seamless, connected security. It's ideal for public facilities requiring accessible and intelligent access control.
- High-intensity full-height pedestrian + PMR turnstile, up to 20 passages/min ×2, bidirectional.
- 1 pedestrian lane + 1 motorized PMR gate, 90° opening.
- Front façade with 2 compression locks to integrate access-control readers.
- Smart red/green LED authorization indicators + dual-side LED lighting.
- Direct-drive rotor with 360° rotary sensor (no visible screw hardware).
- Galvanized steel + aluminium roof, customizable grille/plate design — RAL 7016 standard.
- 230 V single-phase, IP54, 580 kg, clear width: 605 mm pedestrian / 900 mm PMR, height 2000 mm; overall 2634 × 2320 × 1313 mm.
- Delivered pre-assembled in 2 parts + drilling template; foundation 3000 × 1500 × 200 mm, conduits Ø63/40 mm included.
Garantie & RMA
Garantie & RMA
Couvert par la garantie du fabricant. Les réclamations et les retours (RMA) sont coordonnés par Noctoptics depuis Laval, Québec, directement avec le fabricant.
Livraison & ramassage
Livraison & ramassage
Expédié partout dans le monde. Les frais et délais de transport sont établis par destination et inclus dans votre soumission. Ramassage possible à Laval, Québec.
