MISTER FLOW
MISTER FLOW

LBA0026

MISTER FLOW

MISTER FLOW

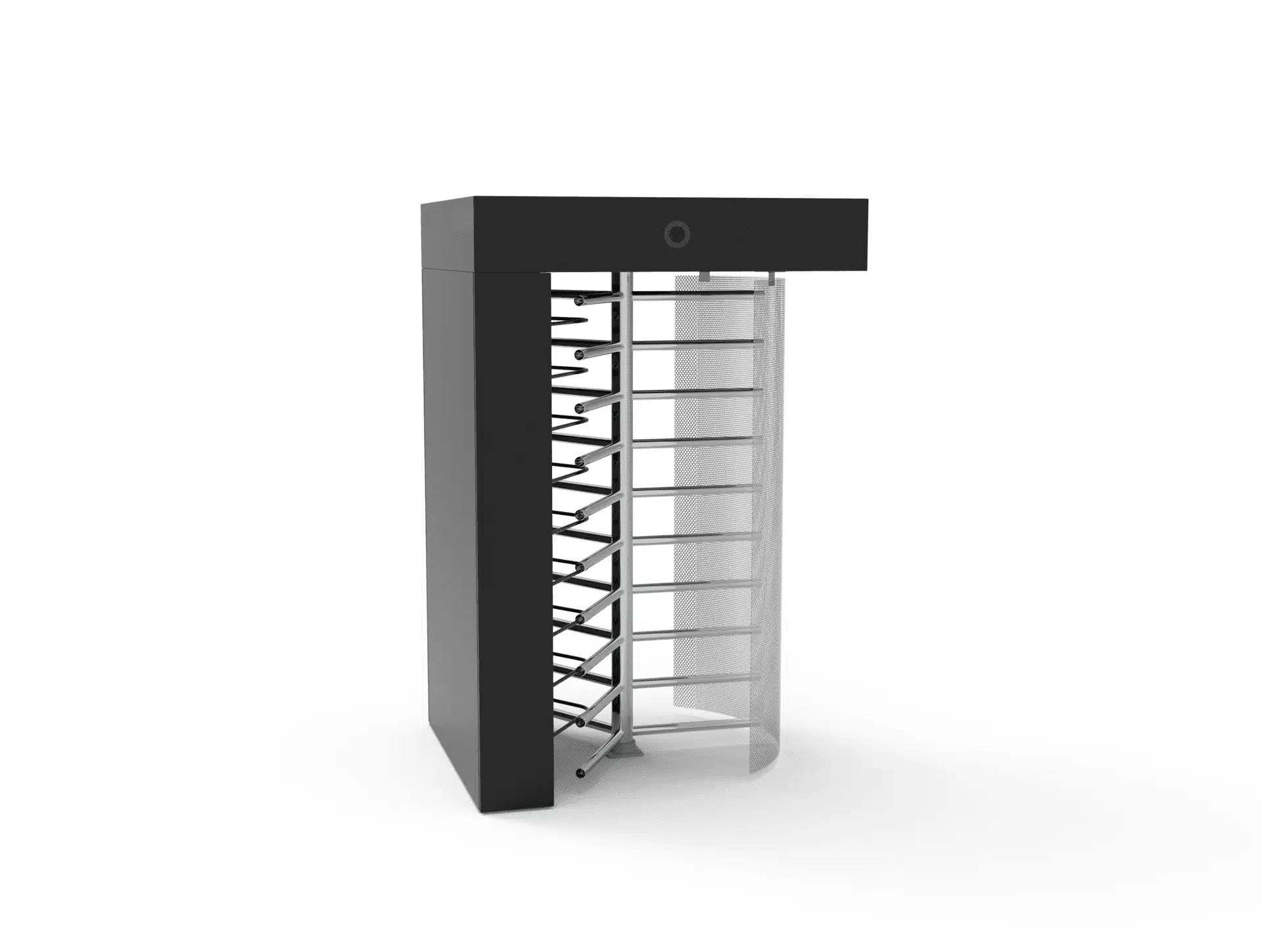

Simple, streamlined turnstile with a 40mm diameter drum. Simplified electronic access, flat roof, painted galvanized structure. Indicator lights, aluminum roof with gutter. Perfect for urban centers, commercial sites, or public spaces.

Request a quote Afficher tous les détails

Description

  • High-intensity pedestrian turnstile, 20 passages/min, bidirectional single lane.
  • Removable front panel with 2 compression locks providing full access to access-control equipment.
  • Integrated LED authorization indicators (red/green) + dual-sided LED lighting.
  • Direct-drive rotor (no visible screws) + 360° rotary sensor for precise positioning.
  • Aluminium roof + steel grilles & skins (cataphoretic treated), RAL 7016 standard (custom RAL optional).
  • IP54, 230 V single-phase, galvanized steel Ø40 mm arms, continuous duty.
  • Useful passage 605 mm (pedestrians) + 900 mm bicycle mode, passage height 2000 mm, total dimensions 1446 × 2314 × 1313 mm.
  • Delivered pre-assembled in 2 elements + drilling template; concrete foundation 3000 × 1500 × 200 mm + Ø63/40 conduits.
