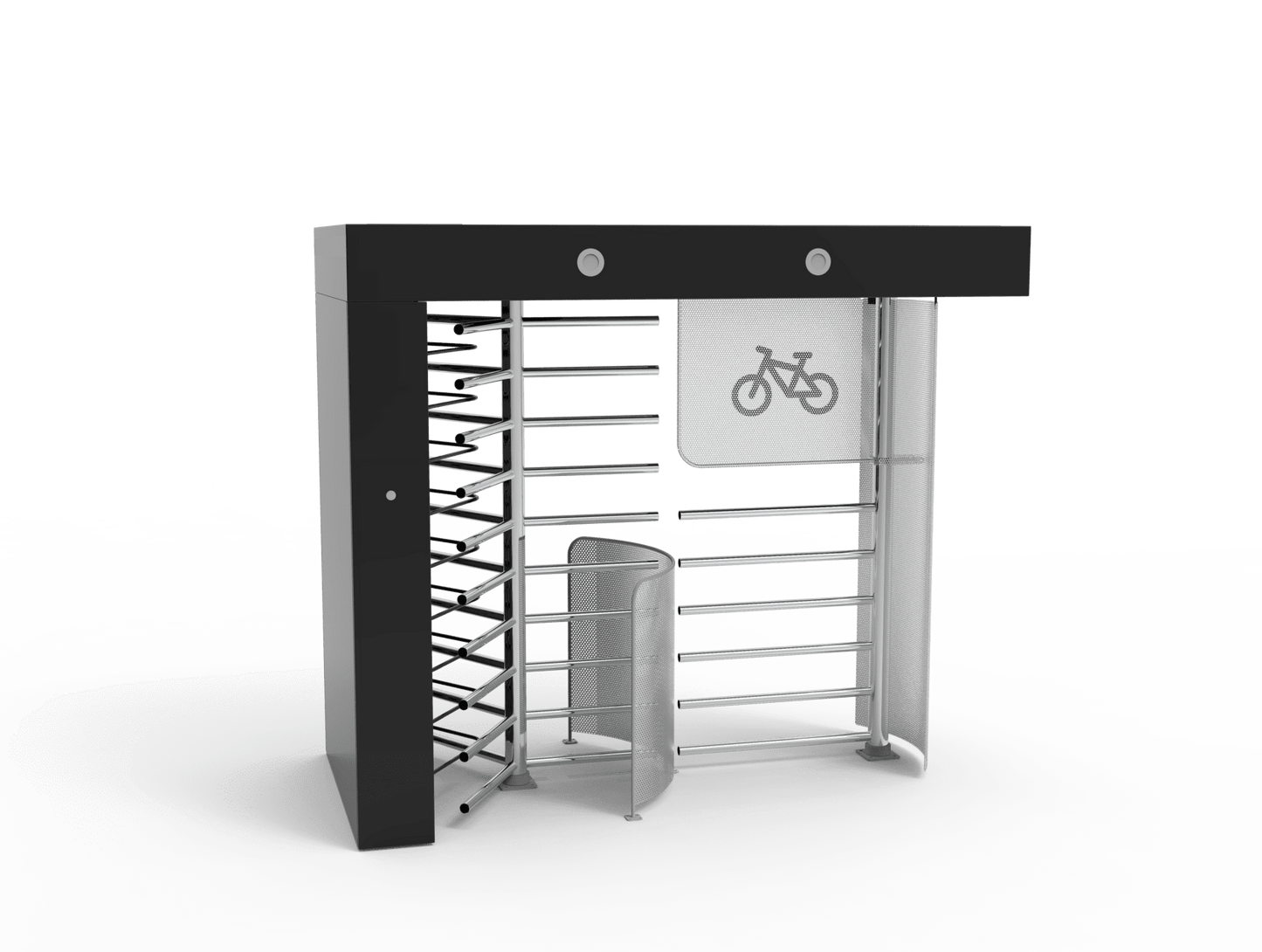

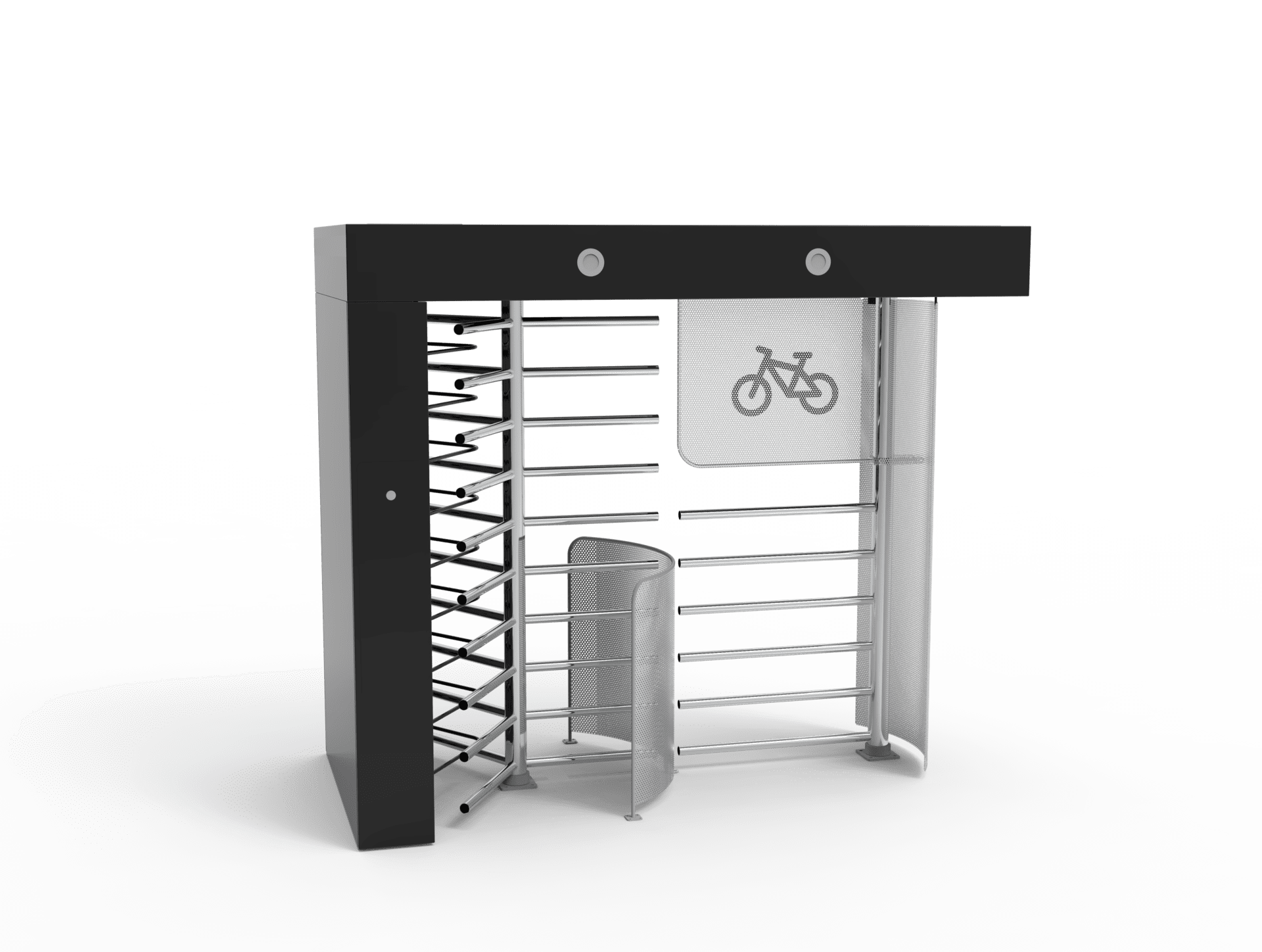

Pedestrian turnstile with integrated motorized 2-wheel passage. Painted galvanized structure, Ø40 mm drum, aluminum roof with gutter. Crossing indicator lights, motorized gate with central locking. Designed for mixed bicycle/pedestrian areas with high traffic.

Request a quote Afficher tous les détails

Description

  • High-intensity pedestrian + bicycle turnstile, up to 20 passages/min, bidirectional.
  • 1 pedestrian passage lane + 1 motorized bicycle gate (90° opening), secure unicity.
  • Front access panel with 2 compression locks for access-control equipment integration.
  • Smart LED indicators (red/green) + integrated dual-side LED lighting.
  • Direct-drive rotor + 360° position detection (no visible screws).
  • Customizable design: aluminium roof, cataphoretic-treated steel bars & plates, RAL 7016 standard.
  • 230 V single-phase power, IP54, clear width: 605 mm pedestrian / 900 mm bicycle; height 2000 mm; overall 2634 × 2313 × 1313 mm, weight 580 kg.
  • Pre-assembled in 2 parts + drilling template; concrete foundation 3000 × 1500 × 200 mm; cable conduits Ø63 / Ø40 mm included.
