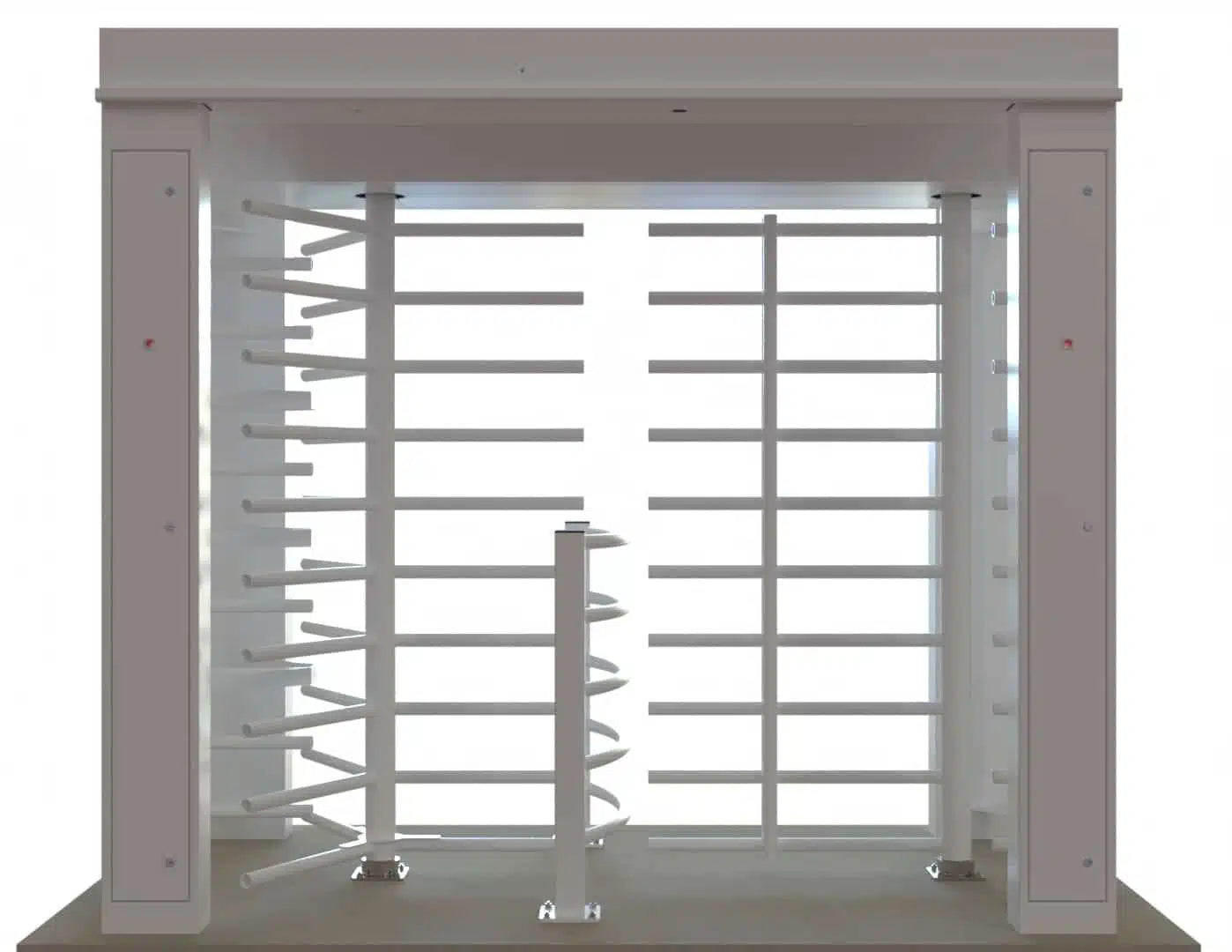

Turnstile with attached gate for disabled access. Single-piece structure, Ø40 mm bars, damped spring return. ERP compliant with passage indicator, One-C logic. Intended for public facilities and restricted areas.

Request a quote Afficher tous les détails

Description

  • High-intensity pedestrian + PMR full-height turnstile, up to 20 passages/min ×2, bidirectional use.
  • 1 pedestrian lane + 1 PMR swing gate, both 90° opening.
  • 3-lock access control panel integrated in front door for easy maintenance.
  • LED authorization indicators (red/green) + integrated LED lighting.
  • Direct-drive rotor with 360° position detection — no visible screws.
  • Galvanized steel frame + aluminium roof, polyester paint RAL 9010.
  • 230 V single-phase, IP54, 580 kg, pedestrian width 675 mm, PMR width 905 mm, height 1988 mm, overall dimensions 2861 × 2328 × 1566 mm.
  • Delivered pre-assembled in 2 parts + drilling template; foundation 2960 × 1700 × 200 mm with Ø40 mm conduits.
