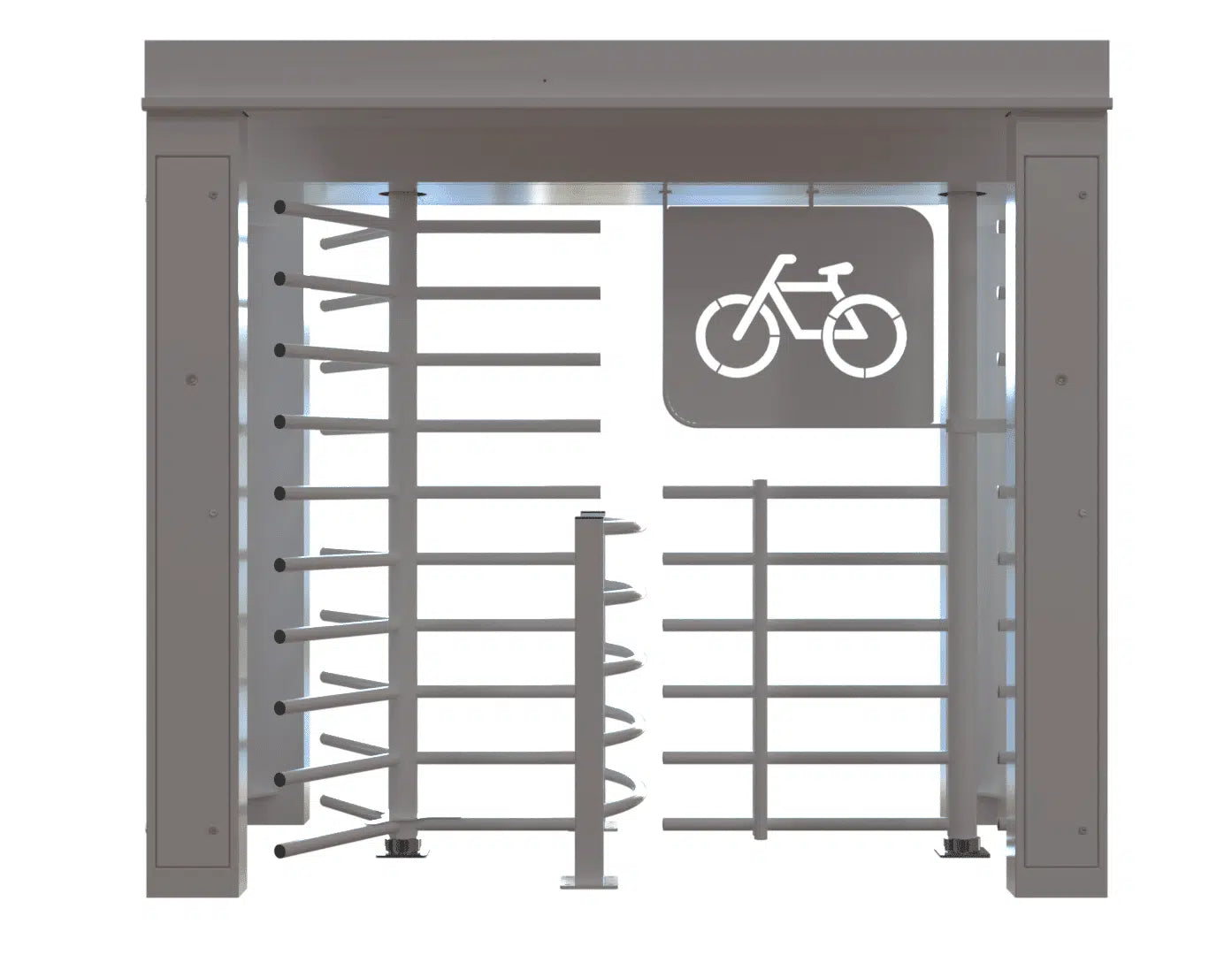

Turnstile with integrated motorized gate for 2 wheels. Galvanized structure, Ø40 mm drum, aluminum roof and LED lighting. Central locking, smooth guidance, passage indicator. Designed for bike parks, businesses or mixed areas.

Request a quote Afficher tous les détails

Description

  • High-intensity pedestrian + bicycle turnstile, up to 20 passages/min, bidirectional entry/exit.
  • 2 access lanes: 1 pedestrian lane + 1 motorized bicycle gate (90° opening).
  • Integrated access control panel behind 3-lock maintenance door.
  • Smart LED guidance (red/green permission) + LED lighting on both sides.
  • Direct-drive rotor + 360° rotary sensor for precise locking control.
  • Galvanized steel structure + aluminium roof with rainwater drainage, RAL 9010 finish.
  • 230 V single-phase power, IP54, total weight 580 kg, pedestrian width 675 mm, bicycle width 905 mm, passage height 1988 mm.
  • Delivered pre-assembled + drilling template; concrete foundation 2960 × 1700 × 200 mm; access cable ducts included.
