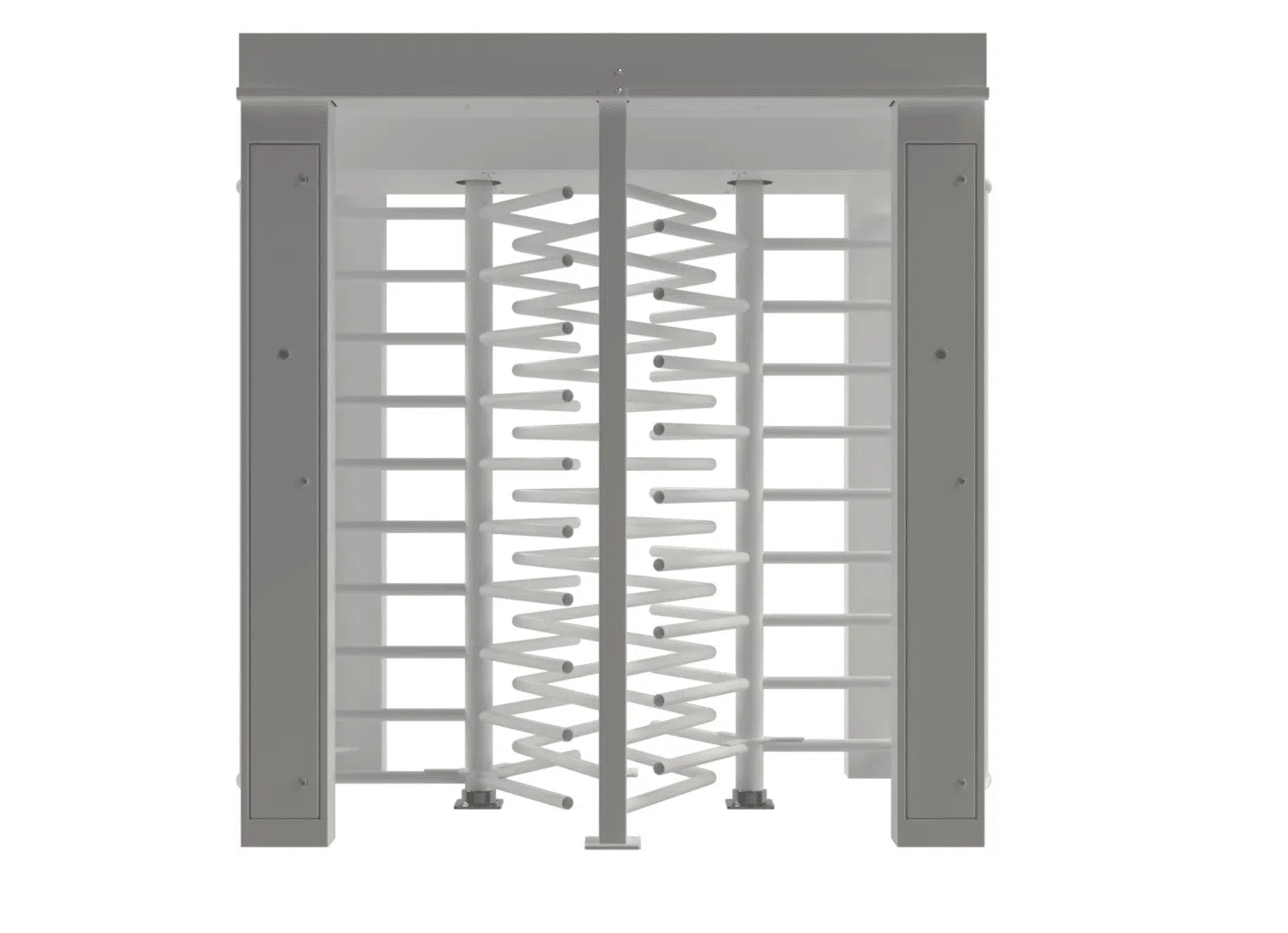

LBA T20 TURNSTILE
LBA T20 TURNSTILE

LBA0022

LBA T20 TURNSTILE

LBA T20 TURNSTILE

Double-pass version of the LBAT10, two Ø40 mm drums. Robust structure, intensive operation, customizable equipment. LED indicators, One-C control, optional anti-climb roof. Ideal for public buildings, industrial areas or bilateral accesses.

Request a quote Afficher tous les détails

Description

  • High-intensity double-lane full-height turnstile — up to 20 passages per minute ×2, bidirectional entry/exit.
  • 2 independent passage lanes with controlled unicity.
  • Integrated access control panel behind 3-lock security cover.
  • LED smart indicators (red/green), integrated LED lighting both sides.
  • Direct-drive rotor with 360° position detection (no visible screws).
  • Galvanized steel body + aluminium anti-rain roof — polyester coating RAL 9010.
  • 230 V single-phase power, IP54, 600 kg, passage width: 2 × 601 mm, height 1988 mm.
  • Delivered pre-assembled, drilling template included, concrete foundation 2600 × 1700 × 200 mm.
