LBA T10
LBA T10

LBA0021

LBA T10

LBA T10

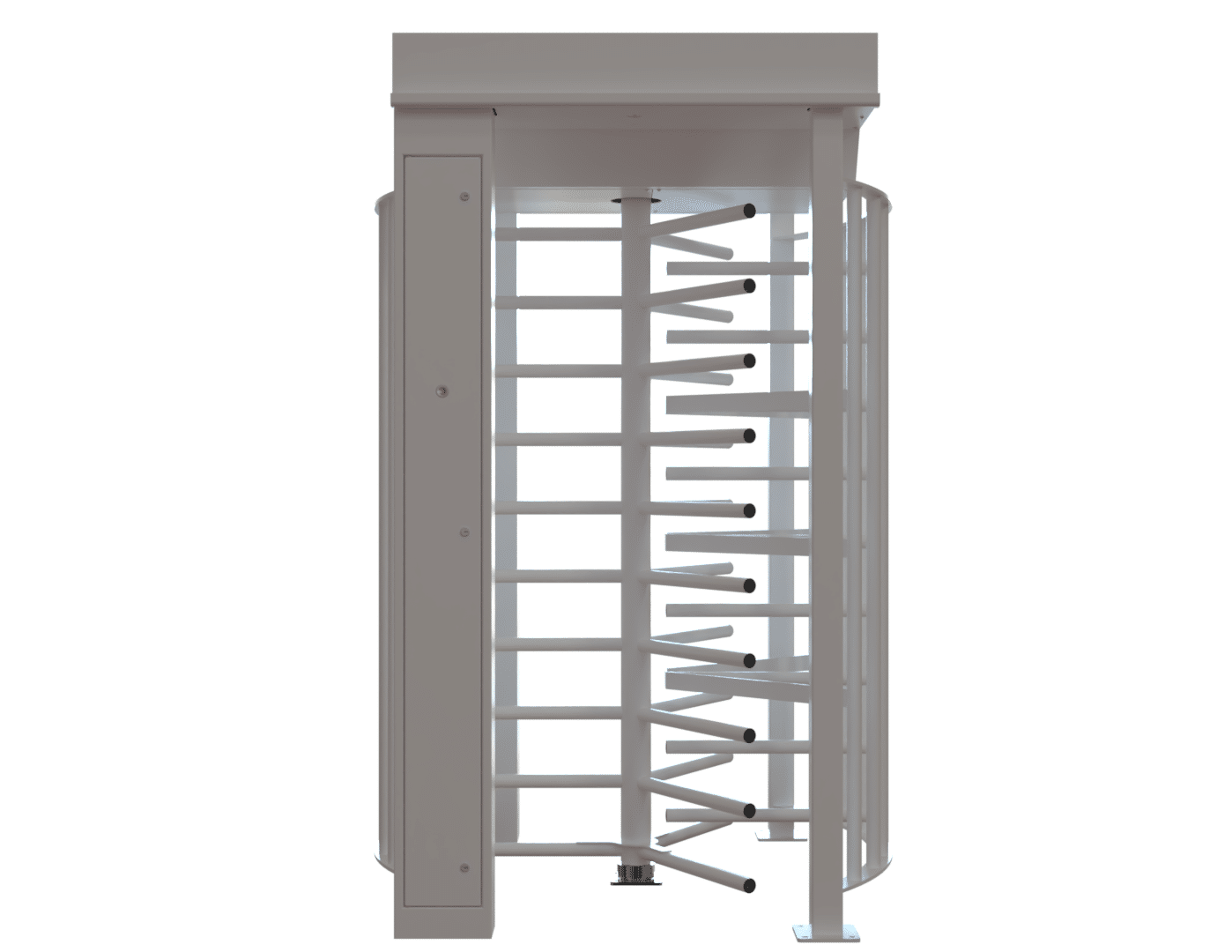

Single-passage turnstile Ø40 mm, aluminum roof, painted galvanized structure. Programmable controller control, authorization lights. Full opening for maintenance access and access control integration. Up to 20 passages/minute, delivered pre-assembled.

Request a quote Afficher tous les détails

Description

  • High-duty pedestrian turnstile — up to 20 passages per minute, bidirectional lane.
  • Integrated access control panel behind 3-lock front plate for easy maintenance.
  • LED guidance indicators (red/green) on both sides + integrated LED lighting.
  • Rotor with direct drive (no exposed screws) + 360° position rotary sensor for precise control.
  • Galvanized steel structure + aluminium roof with rainwater drainage — RAL 9010 finish.
  • Automate with IP communication — supports full integration with access control systems.
  • 230 V single-phase power, IP54, total weight 350 kg, opening width 601 mm, passage height 1988 mm.
  • Delivered pre-assembled (2 sections) + drilling template + foundation 1800 × 1700 × 200 mm.
