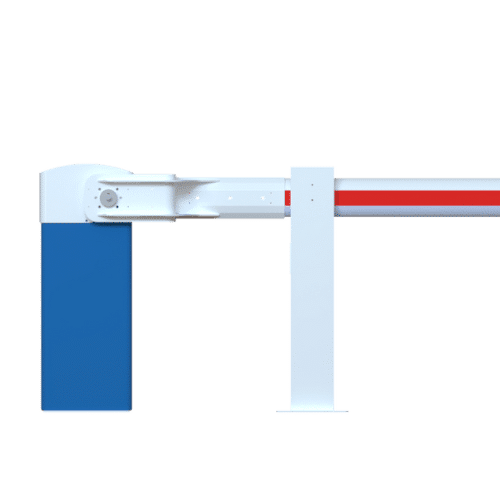

LBA 86 AVB

Reinforced version of the LBA86 with struts and anti-lift rests. Oval boom up to 6 m and integrated electromagnetic lock. Anti-vandalism pack supplied as standard with reinforced protections. Designed for areas exposed to forced entry attempts.

• Opening Speed: Adjustable from 2.1 to 5 seconds, depending on configuration.
• Duty Cycle: Designed for continuous service, 10 000 cycles/day, MCBF 5 million cycles.
• Boom (Arm): High-strength oval reinforced aluminium 180 × 118 mm, 2 to 8 m, white lacquer with reflective strips.
• Motor & Power: Three-phase motor, 230 V supply, 0.25 kW (reversible) or 0.55 kW (irreversible) motor-gearbox; spring compression + chain and gear compensation.
• Controller (ONE-C): Integrated power supply, PLC, frequency inverter, SD card, and RJ45 (Modbus) network port; with ONE-SENSE motor management.
• Structure: Cataphoretic-treated steel body + 2 mm aluminium cover, standard RAL 5015 body / RAL 9010 cover, Ronis 405 lock.
• Options & Safety: Anti-vandal pack, infrared and ultrasonic sensors, LAPI integration, magnetic locks, AVB rest stand, sirens, LED signals, radio receiver (Cardin S 449-433 MHz).
• Installation: Supplied with foundation template + 4 anchor rods, Janolène conduits Ø63 mm; foundation 800 × 800 × 1000 mm.
