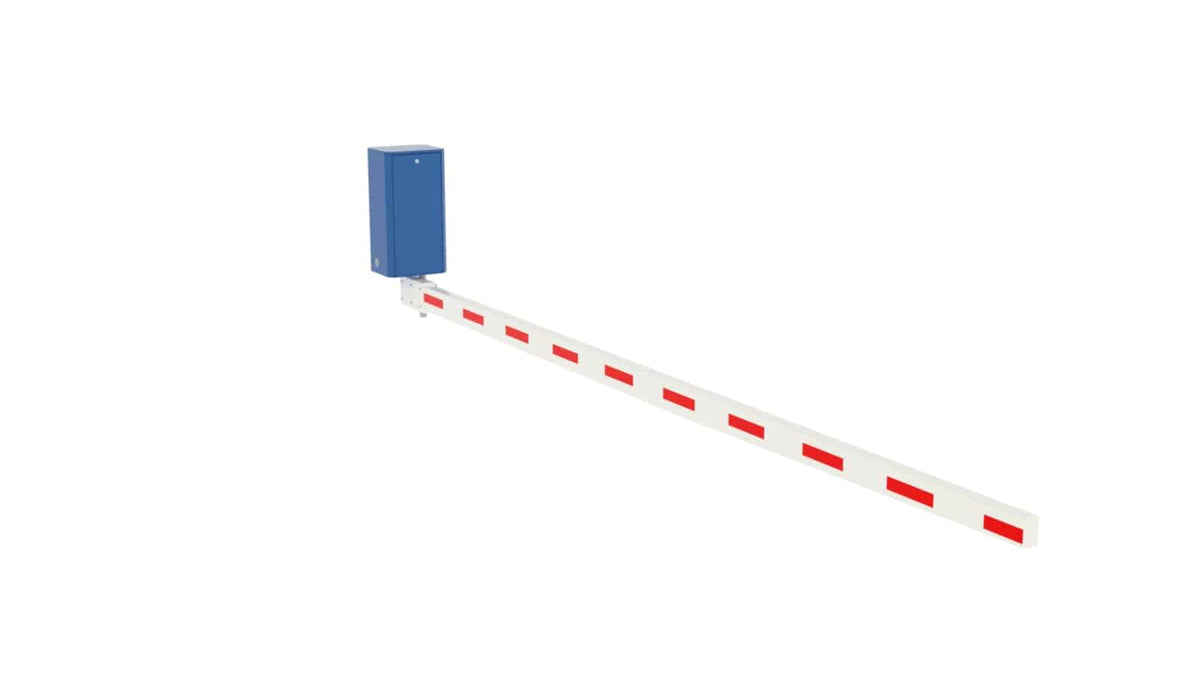

LBA 6 BRA
A swing barrier with a beam up to 6 m long, designed to organize access to places with a large passage width and control the passage of vehicles in road tunnels.
Demander une soumission pour ce produit
Ce produit est configuré pour chaque site, alors nous ne publions pas de prix. Parlez-nous du projet et un représentant Noctoptics reviendra avec le prix, les options et le délai, normalement en un jour ouvrable.
Description
A swing barrier with a beam up to 6 m long, designed to organize access to places with a large passage width and control the passage of vehicles in road tunnels.
- Logic panel with multi-program control board and SD card memory.
- Built-in heating to prevent condensation inside the cabinet.
- Mechanical sensors to record the current position of the arm (open / closed).
- Frequency-drive motor control (0.25 kW) with adjustable acceleration/deceleration and speed regulation.
- Supply voltage 230 V ±20 V AC, 50 Hz ±2 Hz; double-gear gearbox; wind load design allowing locks up to ≥ 140 km/h.
- Arm (boom) of fibreglass, length from 2 to 6 m with reflective strips.
- General technical specs: Motor 0.18 kW three-phase, MCBF ≥ 5 000 000 cycles, MTBF ≥ 15 000 h, IP rating IP54, temperature –30 °C to +55 °C.
- Finish: Steel body (20/10 mm sheet) treated by cataphoresis, powder-coated at 250 °C standard RAL 5015 (other RAL colours on demand).
