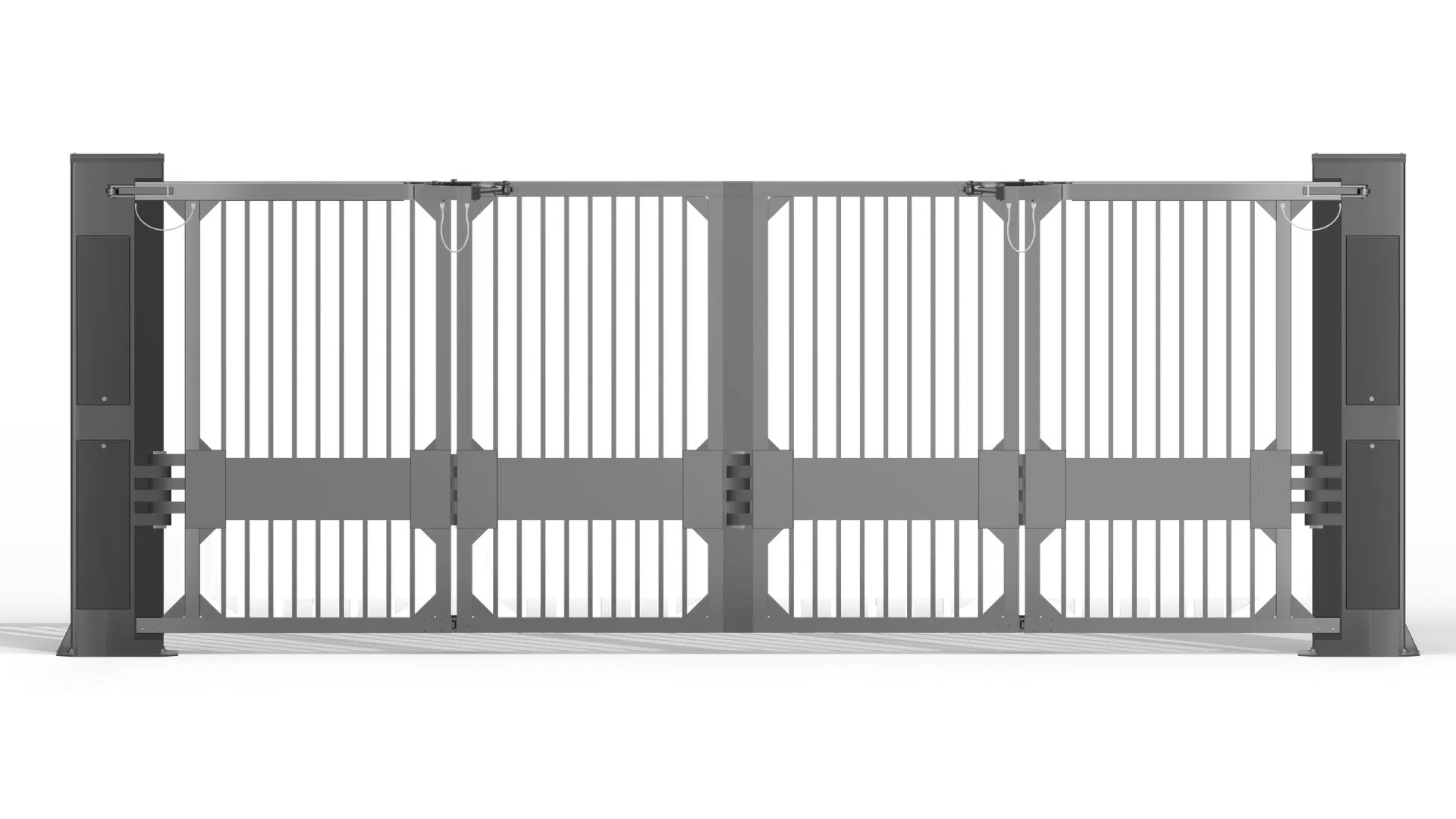

LBAI W-GATE 7580 CRASH TESTED
LBAI W-GATE 7580 CRASH TESTED

LBA0020

LBAI W-GATE 7580 CRASH TESTED

LBAI W-GATE 7580 CRASH TESTED

The only crash-tested double gate, featuring advanced artificial intelligence and an opening speed of up to 1m/s. It guarantees optimal protection for very high-risk sites with a high flow of vehicles. Crash tested 7.2 T at 80 km/h

Request a quote Afficher tous les détails

Description

  • Crash-certified folding gate for 2–8 m passage width — certified to stop a 7.5-ton truck at 80 km/h.
  • Rapid opening with reduced swing envelope for constrained sites.
  • Dual motorization (2 × 0.12 kW motors with brake) and electronics fully integrated in the post.
  • ONE-C controller with power supply, PLC, frequency inverter, SD, and RJ45 (Modbus) with torque limiter.
  • Optional AI safety system (LBAi Detect) + buzzer/light signaling + IR cells + anti-climb defensive teeth.
  • Aluminium wings + cataphoretic-treated steel post, polyester powder coating (RAL customization).
  • 230 V power supply, 200 W consumption, IP55, –30 °C to +55 °C, thermostatic anti-condensation heater, positive brake.
  • Mechanical stop + electric actuator lock on battery backup + foundation 3000 × 3000 × 550 mm reinforced concrete.
