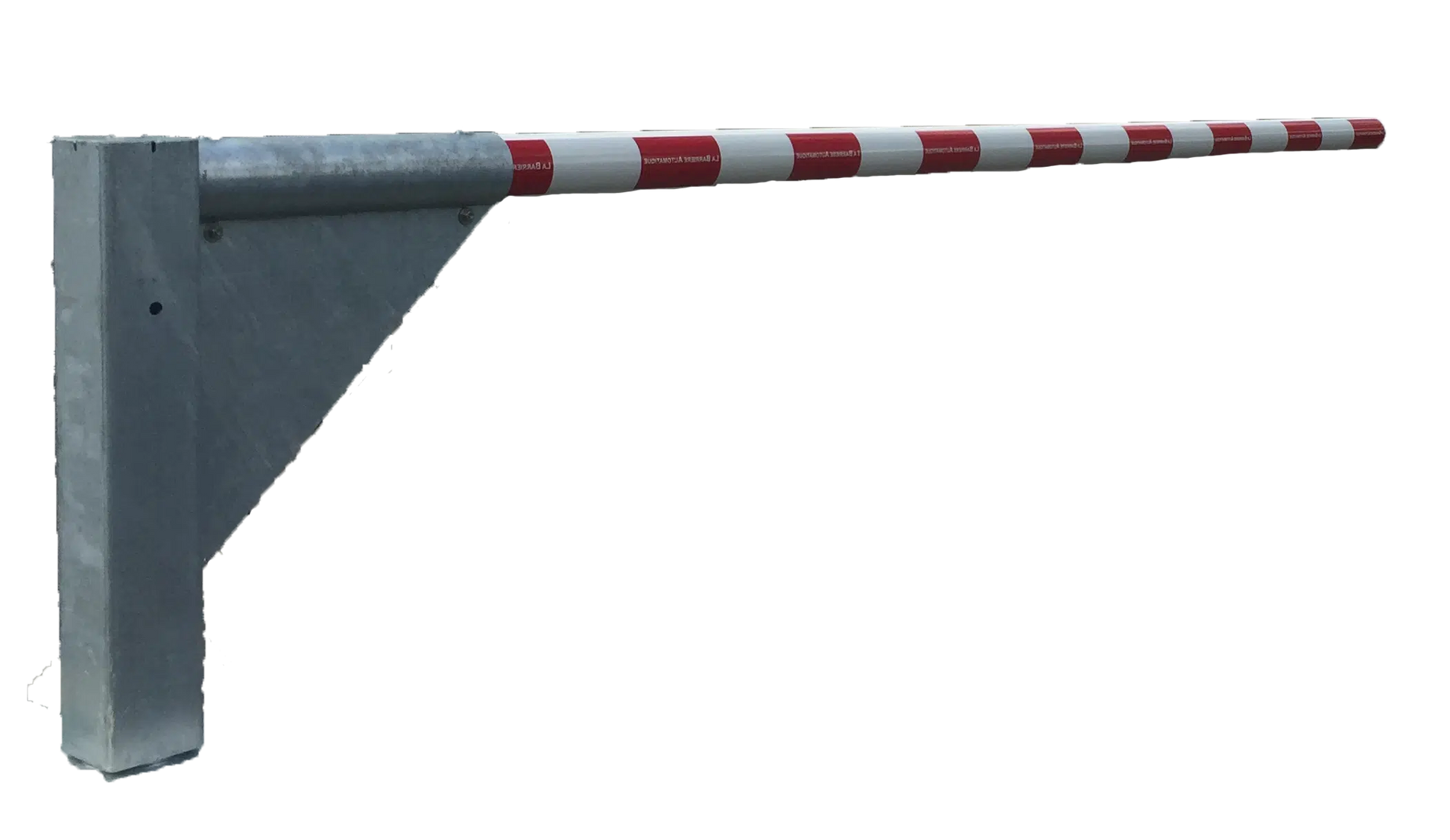

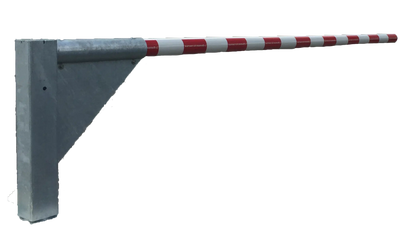

The LBMH 12 is designed to operate in the open position and to be closed occasionally to block access to a lane (road, motorway, lane separations). Can be used on motorways or in urban areas. Length up to 12 m.

Request a quote Afficher tous les détails

Description

  • Type: Manual horizontal swing barrier for lane closure up to 12 meters.
  • Boom (Arm): Fibreglass boom Ø140 mm, length 3 – 12 m, with red and white reflective stripes; designed to disintegrate safely upon strong impact.
  • Structure: Fixed galvanized steel frame for high durability and weather resistance.
  • Mounting Plate: 350 × 350 mm base plate, with 250 mm hole spacing, fixed by 4 × M20 × 500 mm anchor rods.
  • Operation: Simple manual swing with lockable rest position; no electricity required.
  • Safety Equipment (Optional): Limit switches (open/closed), flash lights, rest stand, rest stand with 3-key padlock, dual-barrier locking system, or sealing rods.
  • Foundation Dimensions: 600 × 600 × 800 mm.
  • Manufacture: 100% Made in France, corrosion-protected, for long-term outdoor installation.
