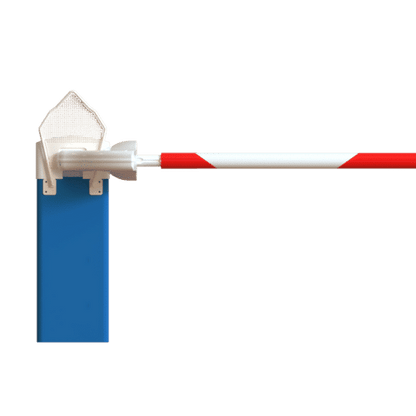

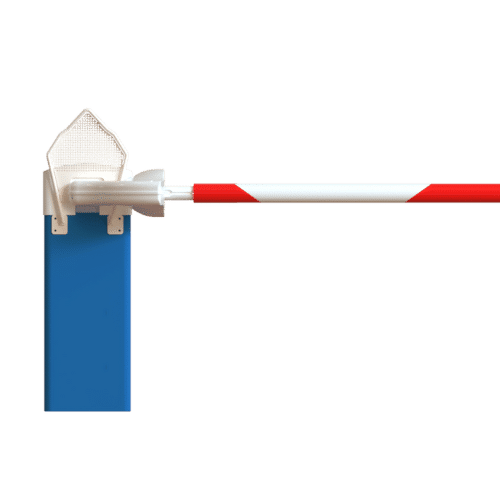

LBA 63 PG FLEX
LBA 63 PG FLEX

LBA0007

LBA 63 PG FLEX

LBA 63 PG FLEX

With the LBA 63 PG Flex, reduce maintenance costs at toll stations and limit waiting times during busy periods. Equipped with a Flex boom, the LBA 63 PG guarantees optimum opening speed and continuous service, and ultimately limits waiting times at the toll.

Request a quote Afficher tous les détails

Description

  • Opening Speed: Variable and adjustable from 0.6 to 1.2 seconds, optimized for toll or high-speed access lanes.
  • Duty Cycle: Designed for continuous intensive use (20 000 cycles/day) with MCBF = 10 million cycles.
  • Controller (ONE-C): Integrated power supply, PLC, frequency inverter, SD card slot, and RJ45 (Modbus) network interface.
  • Motor Control (ONE-SENSE): Intelligent automatic motor management with anti-rebound and controlled re-hinging system.
  • Motor & Power: 0.18 kW three-phase reversible motor-gearbox, supports auto-lift on power loss.
  • Boom (Arm): Patented FLEX boom, tested for 1200+ impacts without breaking, length up to 3.5 m.
  • Housing & Protection: Cataphoretic-treated steel body, 2 mm aluminium cover, IP54, operation from −30 °C to +55 °C.
  • Installation: Delivered with foundation template, 4 anchor rods, Janolène conduits, and auto-lift system.foundation dimensions 600 × 600 × 800 mm.
