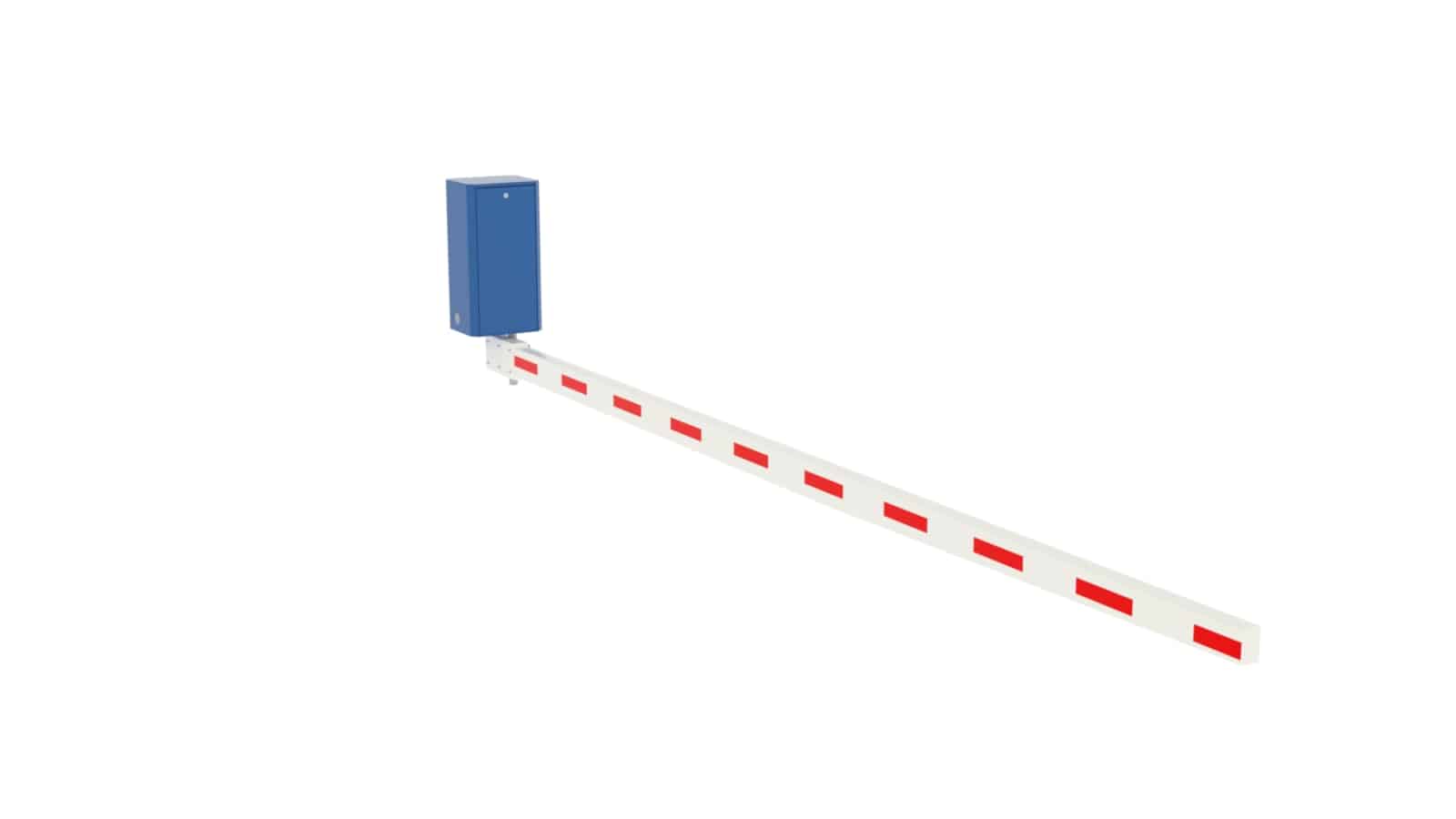

A swing barrier with a beam up to 6 m long, designed to organize access to places with a large passage width and control the passage of vehicles in road tunnels.

Request a quote Afficher tous les détails

Description

  • Logic panel with multi-program control board and SD card memory.
  • Built-in heating to prevent condensation inside the cabinet.
  • Mechanical sensors to record the current position of the arm (open / closed).
  • Frequency-drive motor control (0.25 kW) with adjustable acceleration/deceleration and speed regulation.
  • Supply voltage 230 V ±20 V AC, 50 Hz ±2 Hz; double-gear gearbox; wind load design allowing locks up to ≥ 140 km/h.
  • Arm (boom) of fibreglass, length from 2 to 6 m with reflective strips.
  • General technical specs: Motor 0.18 kW three-phase, MCBF ≥ 5 000 000 cycles, MTBF ≥ 15 000 h, IP rating IP54, temperature –30 °C to +55 °C.
  • Finish: Steel body (20/10 mm sheet) treated by cataphoresis, powder-coated at 250 °C standard RAL 5015 (other RAL colours on demand).
